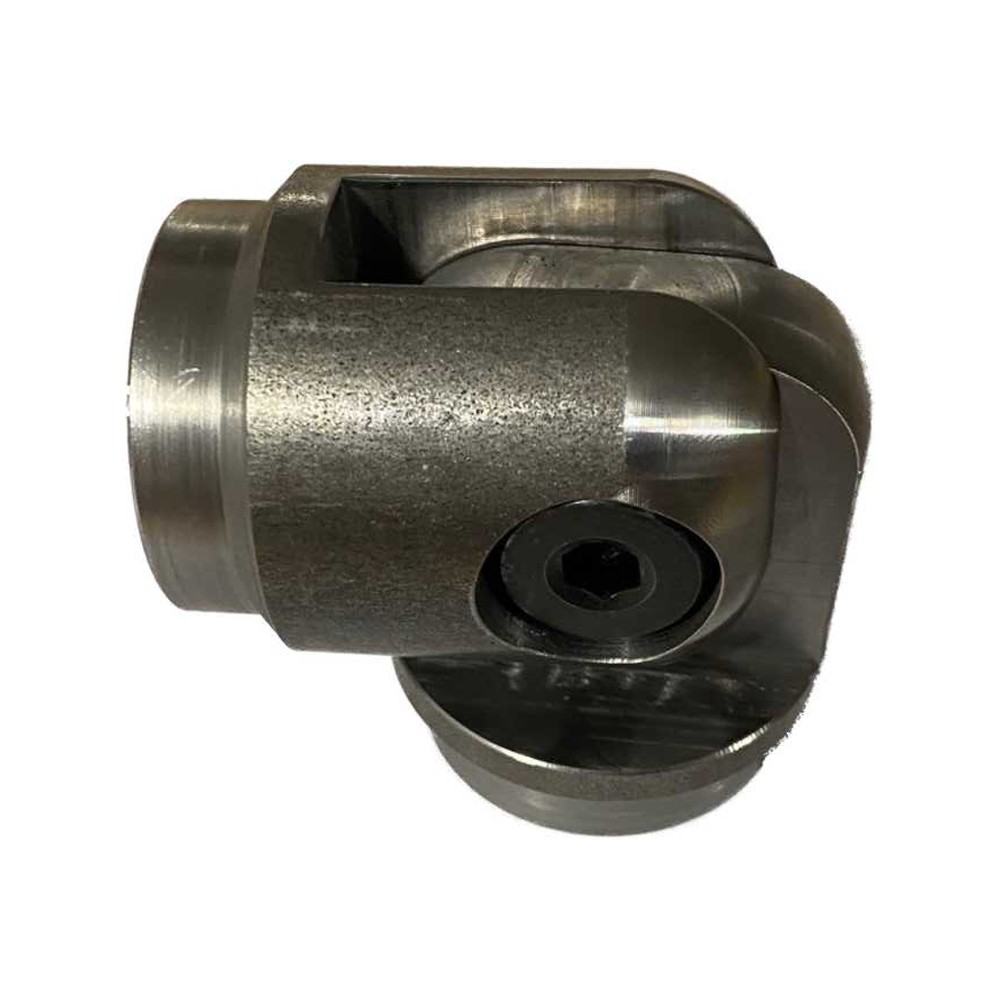

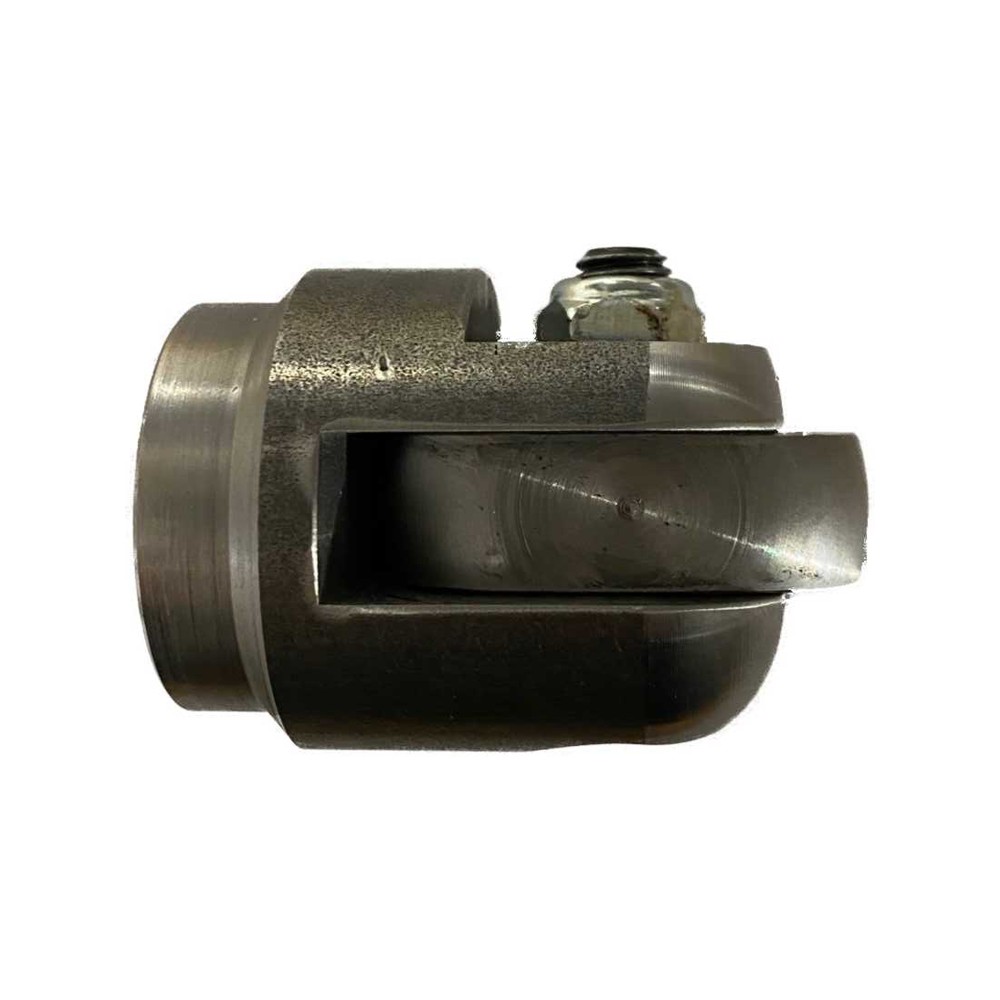

Great for SXS doors and tire carriers. Our Tubing Hinges are a great way to make quality doors for your SXS.

Our Tubing Hinges also work well for tire carriers and anything else that you would want to swing out of the way. We CNC machine our tubing hinges from 1018 steel and use a 1/2 inch diameter shoulder bolt as the pivot pin.

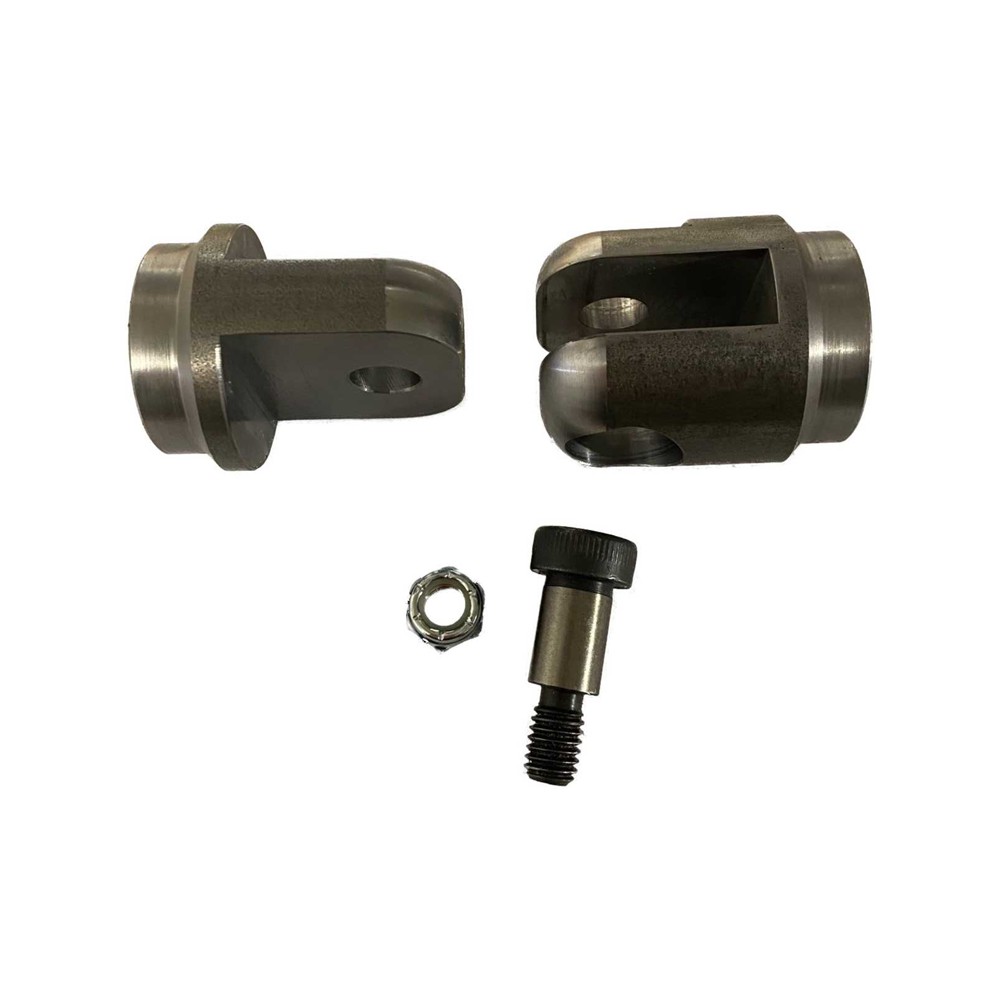

This hinge uses a lock nut with the shoulder bolt to tighten the hinge for the correct resistance. The shoulder bolt is hardened for great wear resistance.

Each tubing hinge has a nice weld chamfer to fit inside your tubing for the perfect weld. These are designed for 1.50 inch and 1.75 inch OD tubing with a.120 inch wall thickness.

You may also be interested in our Tubing Disconnect to complete your other tubing projects.

• American Made
• Perfect for doors on your SXS
• Works good for tire carriers
• Uses 1/2 inch shoulder bolt with nut
• Rotates 180 degrees
• Nice weld chamfer
• Rugged design

Details:

• Tubing Diameter: 1.75 Inch
• Material: 1018 Steel
• Shape: Round
• Sold As: Each
