This system features the S4 4-piston caliper mounted to a 12 inch, 1 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular DR1 or HB100 pad type.

Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses are also included.

The 12 inch SS4 fits most 16 inch or larger wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather & Pressure
• 1-Piece Slot, Drilled, Zinc-Plate Rotor

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Fitment Notes: w/OE Large Pattern 10/12 Bolt C-clip (Bih) Housing Ends, 5 Lug (5x5 InchBC)
• Caliper: S4

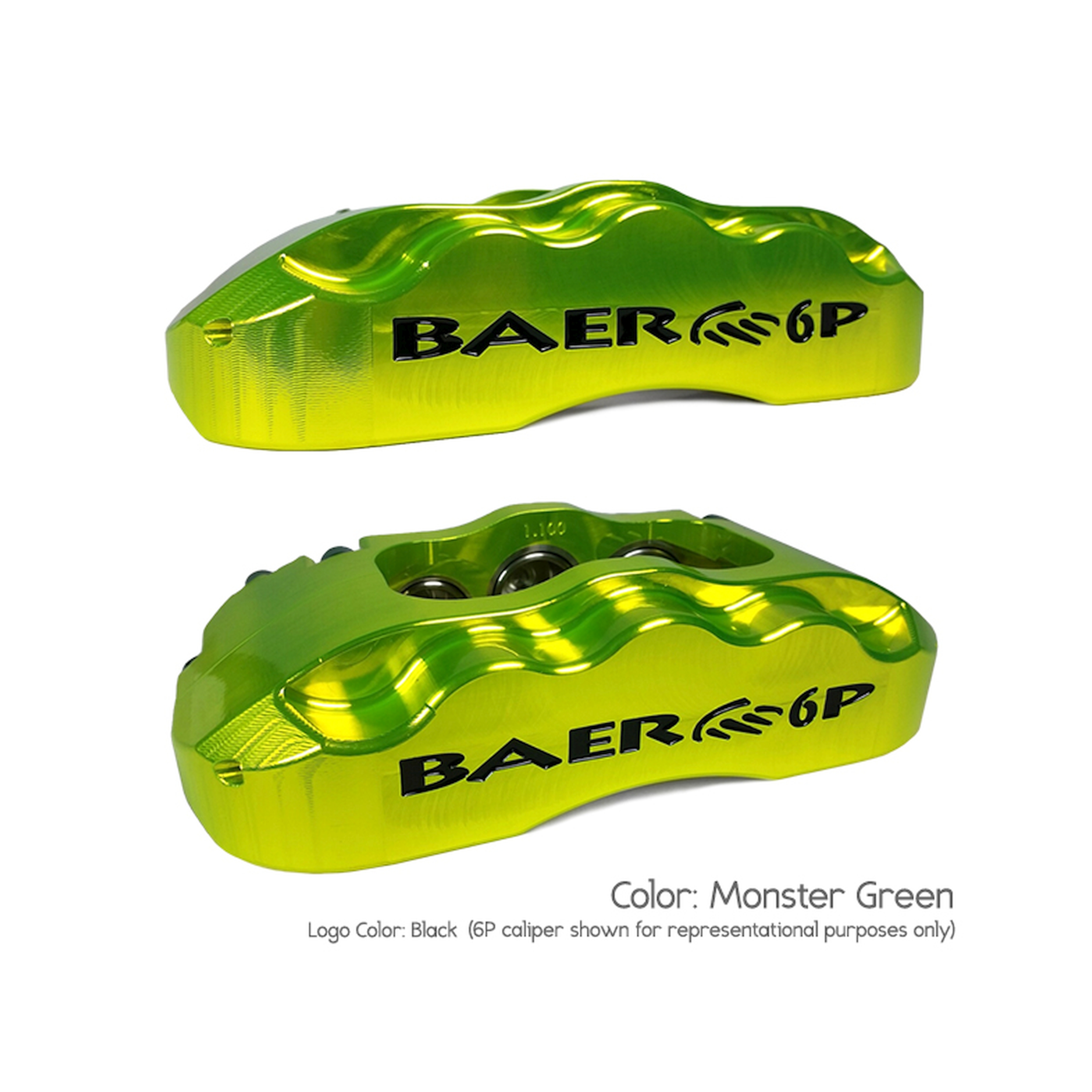

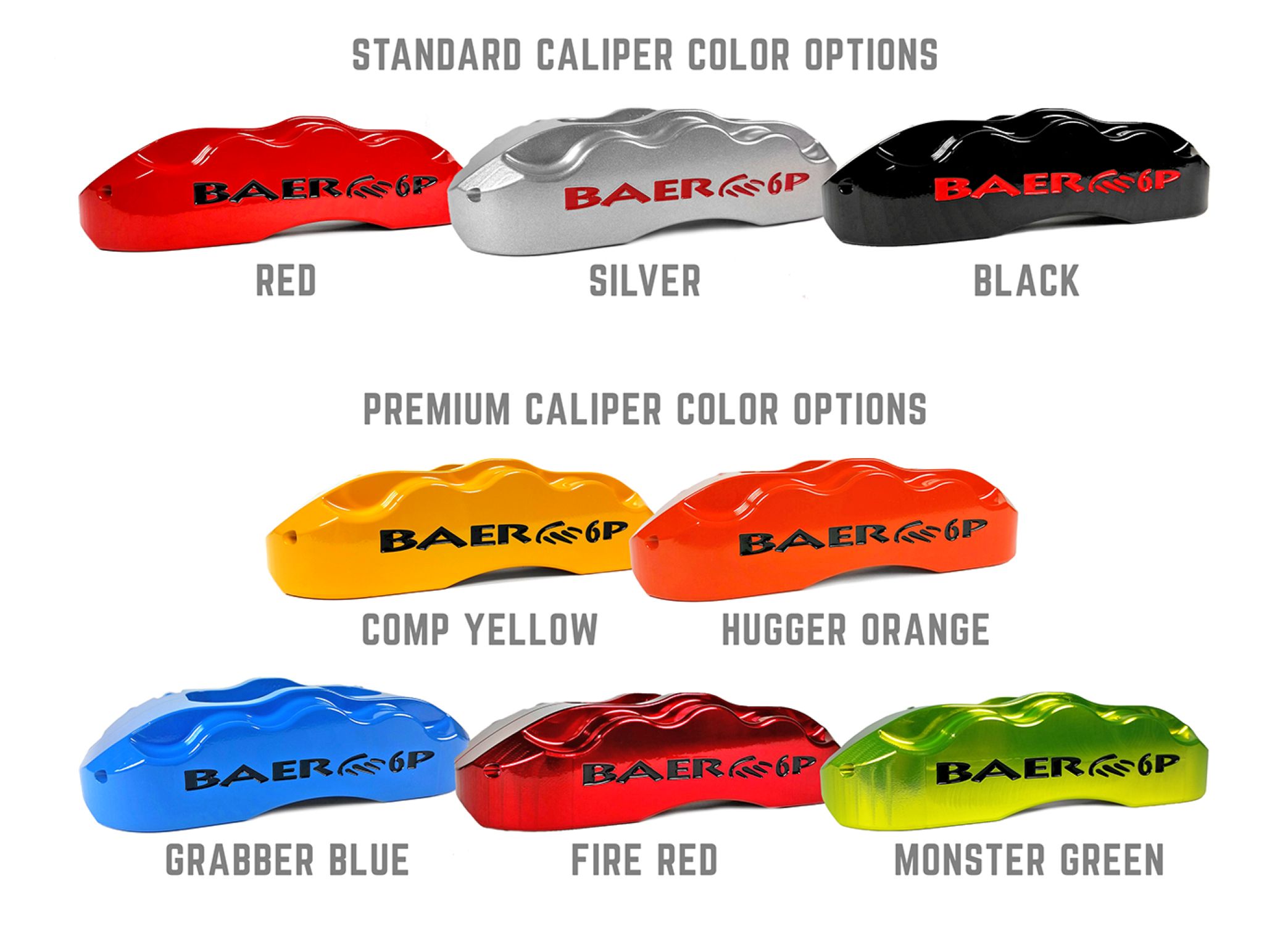

• Caliper Color: Monster Green
• Disc Brake Rotor (Rear) Outside Diameter: 12.0 Inch
• Drive: 2WD
• Applications: GM C10 Trucks 60-87
• Axle: Rear
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Rear) Piston Quantity: 4
• Disc Brake Caliper (Rear) Type: Floating
• Disc Brake Pad FMSI Number: DR1-C
• Disc Brake Rotor (Rear) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Includes Park Brake: Yes
• Includes Park Brake Cables: No
• Lug Count: 5 Lug
• Min Wheel Diameter: 16.0 Inch
• Rotor Thickness: 1.02
• Rotor Type: 1-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: S113E
• Wheel Lug/Bolt Pattern: 5x5.00
