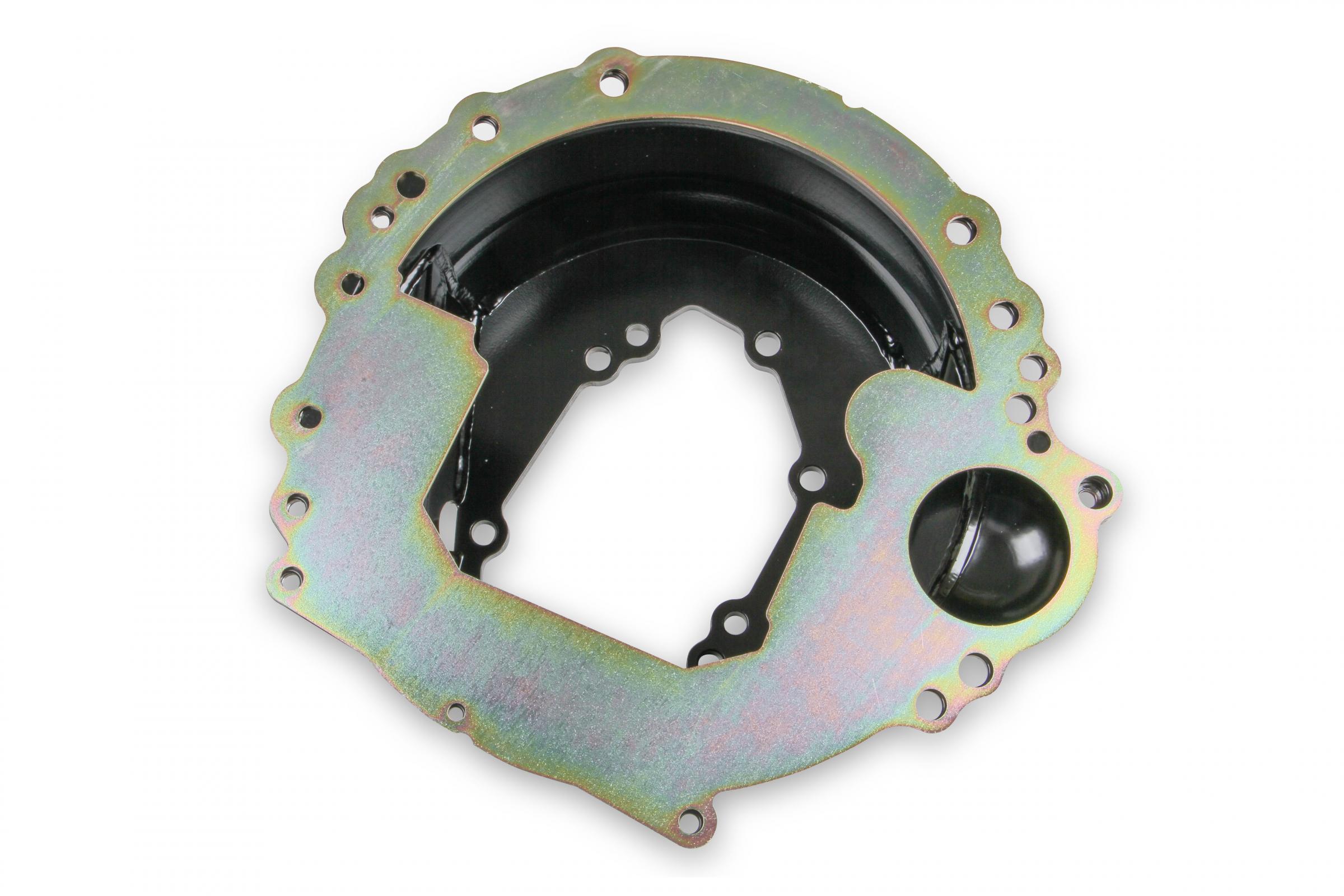

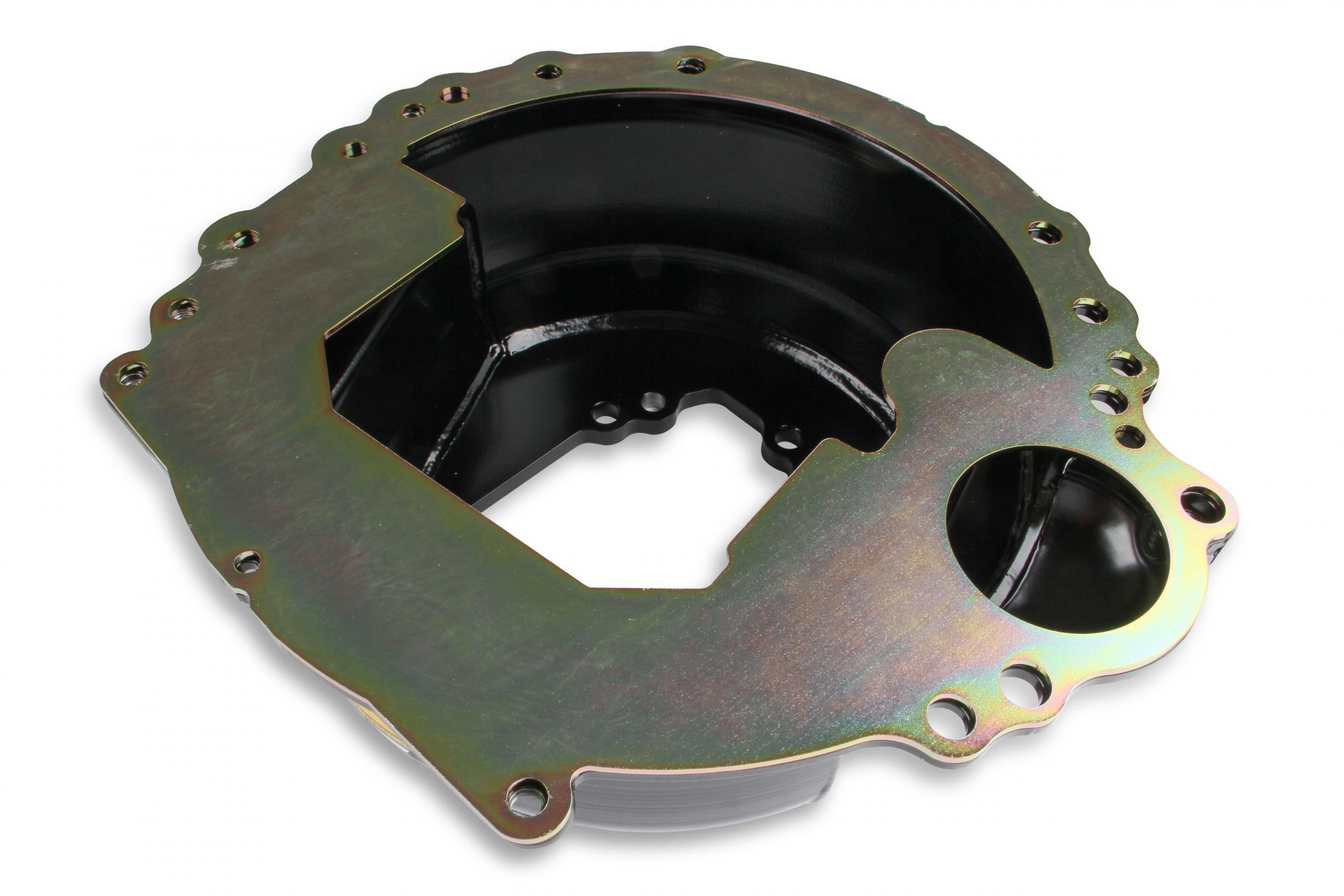

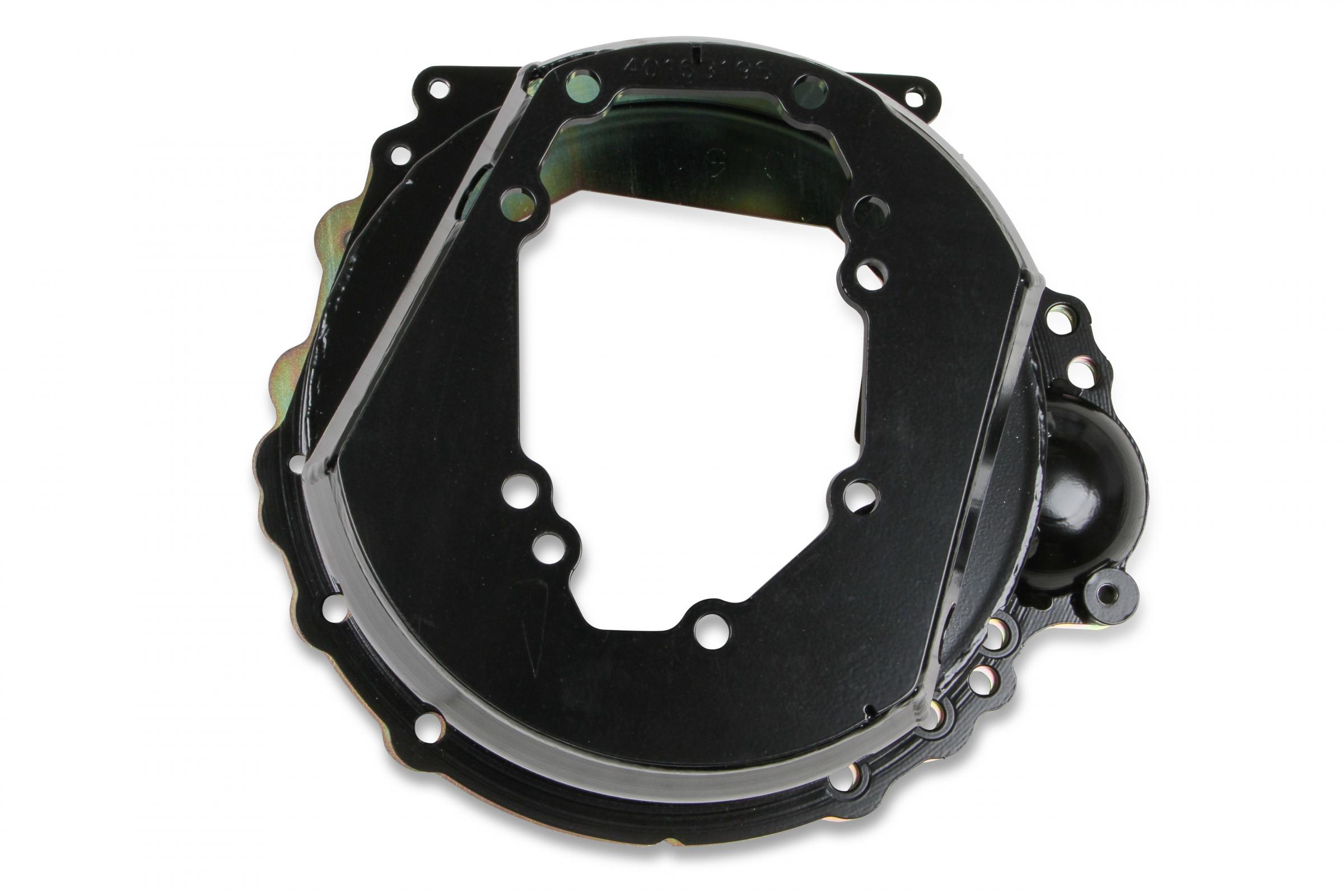

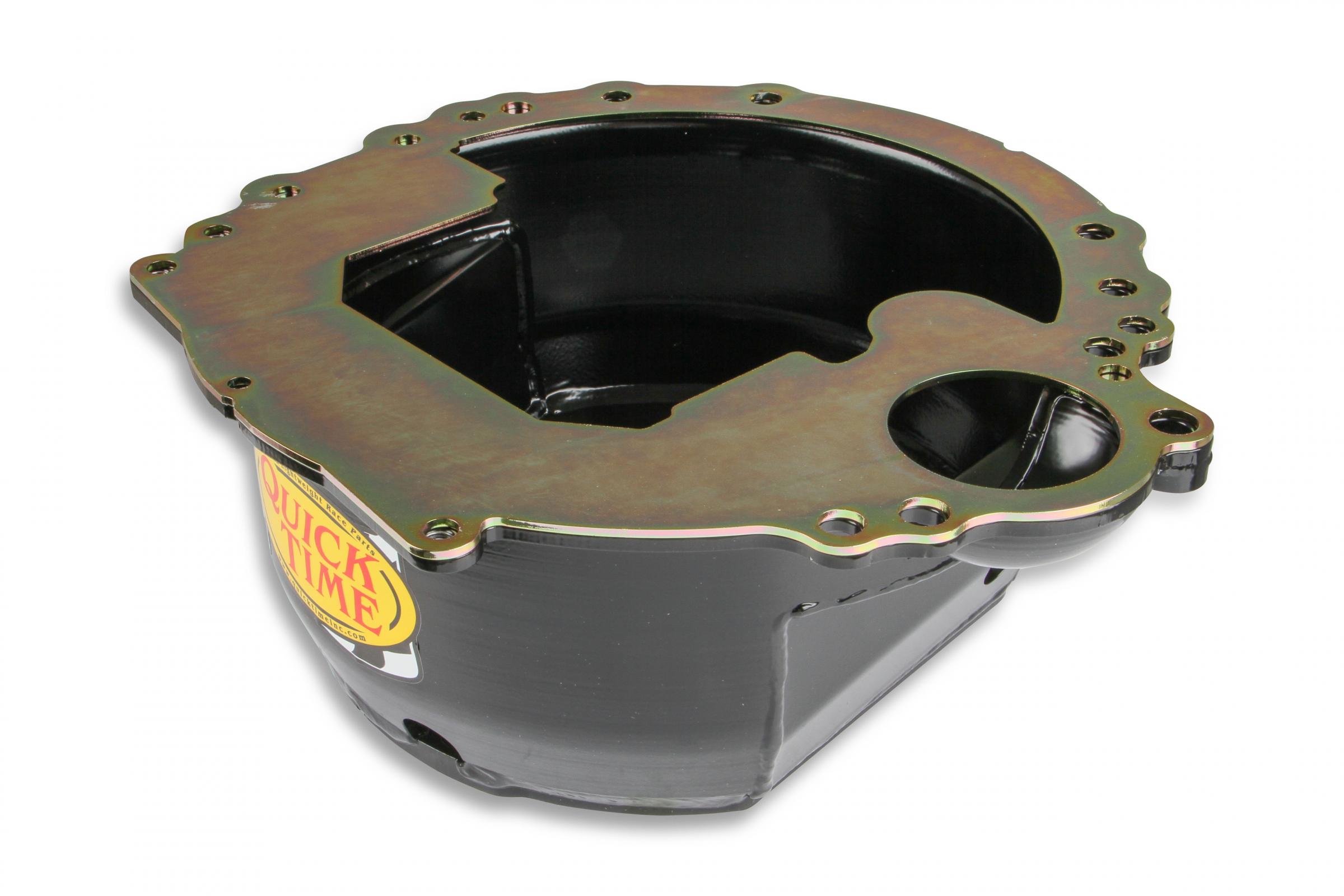

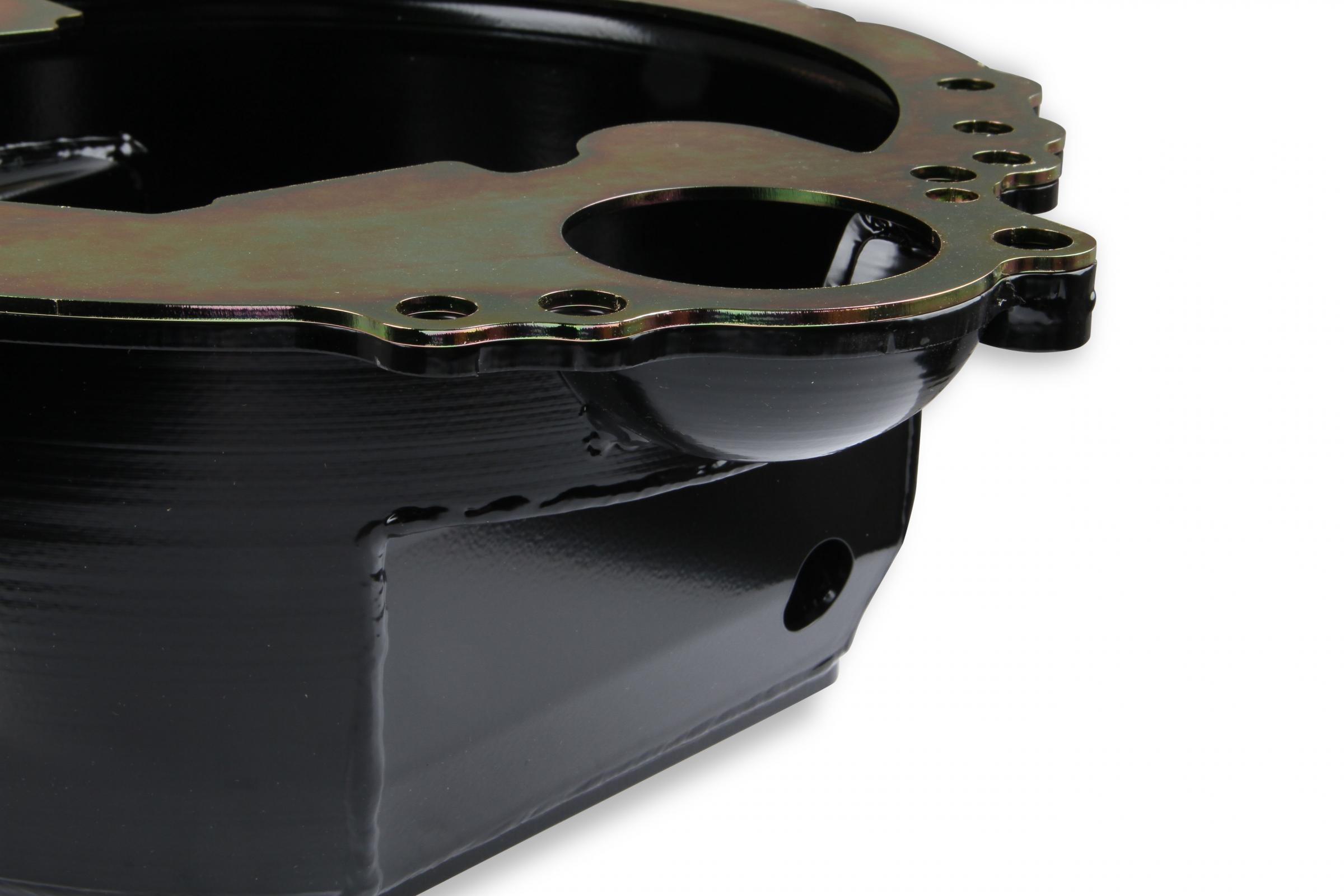

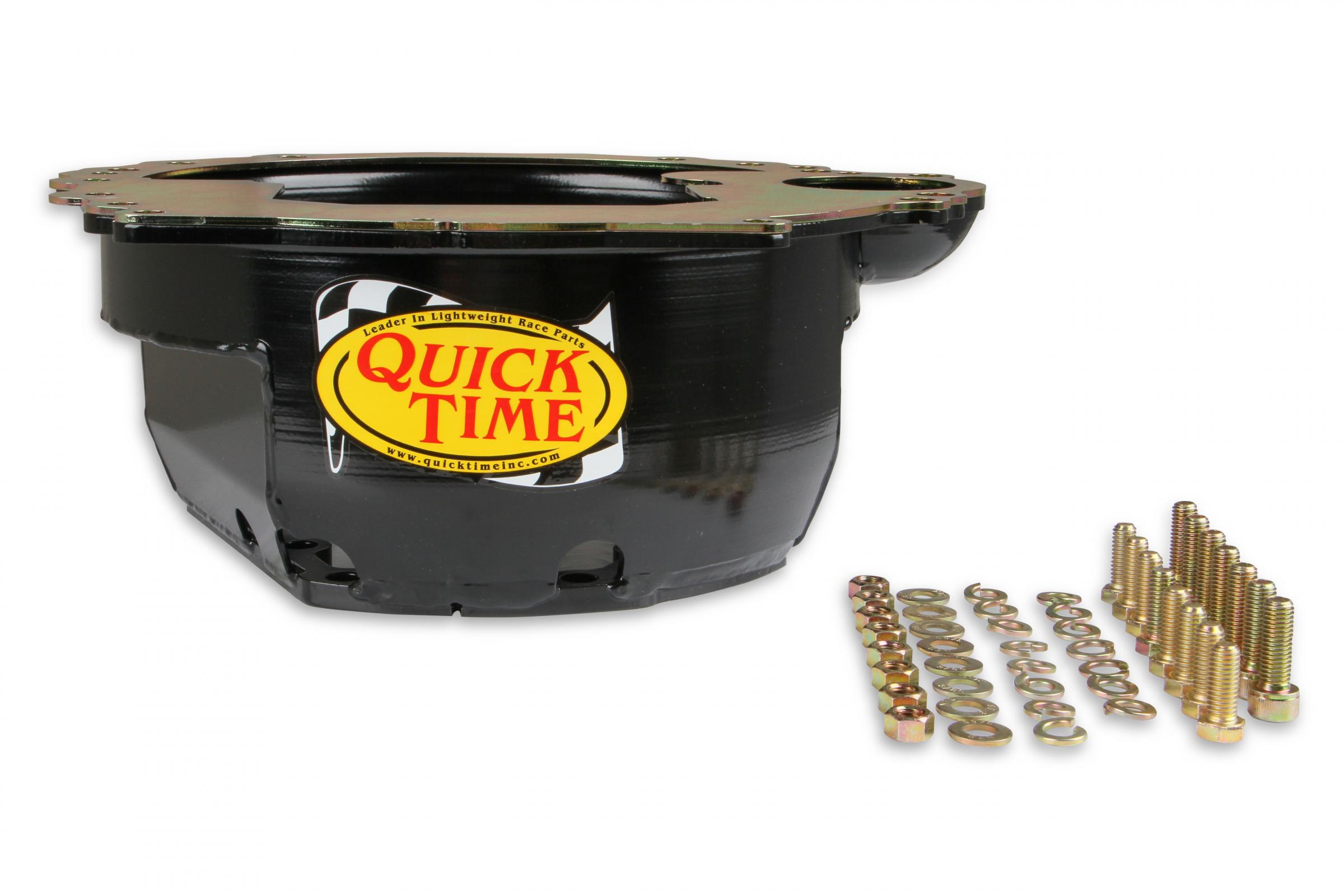

This lightweight Quick Time steel bellhousing fits Mazda MX5 to Sadev sequential manual transmission.

Features and Benefits:

• Designed for use with Sadev sequential manual transmission
• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel a Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 125 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• SFI Certified: Yes
• Transmission: Sadev Sequential
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine Make: Mazda
• Make: Mazda
• Weight: 20 lbs
• Clutch: 7.25 Clutch Disc
• Clutch Diameter: 7.25 inch
• Engine Plate: RM-4091-C
• SFI Certification: 6.1
• Engine Family: Mazda 20B
• Starter: OE

Associated Comments:

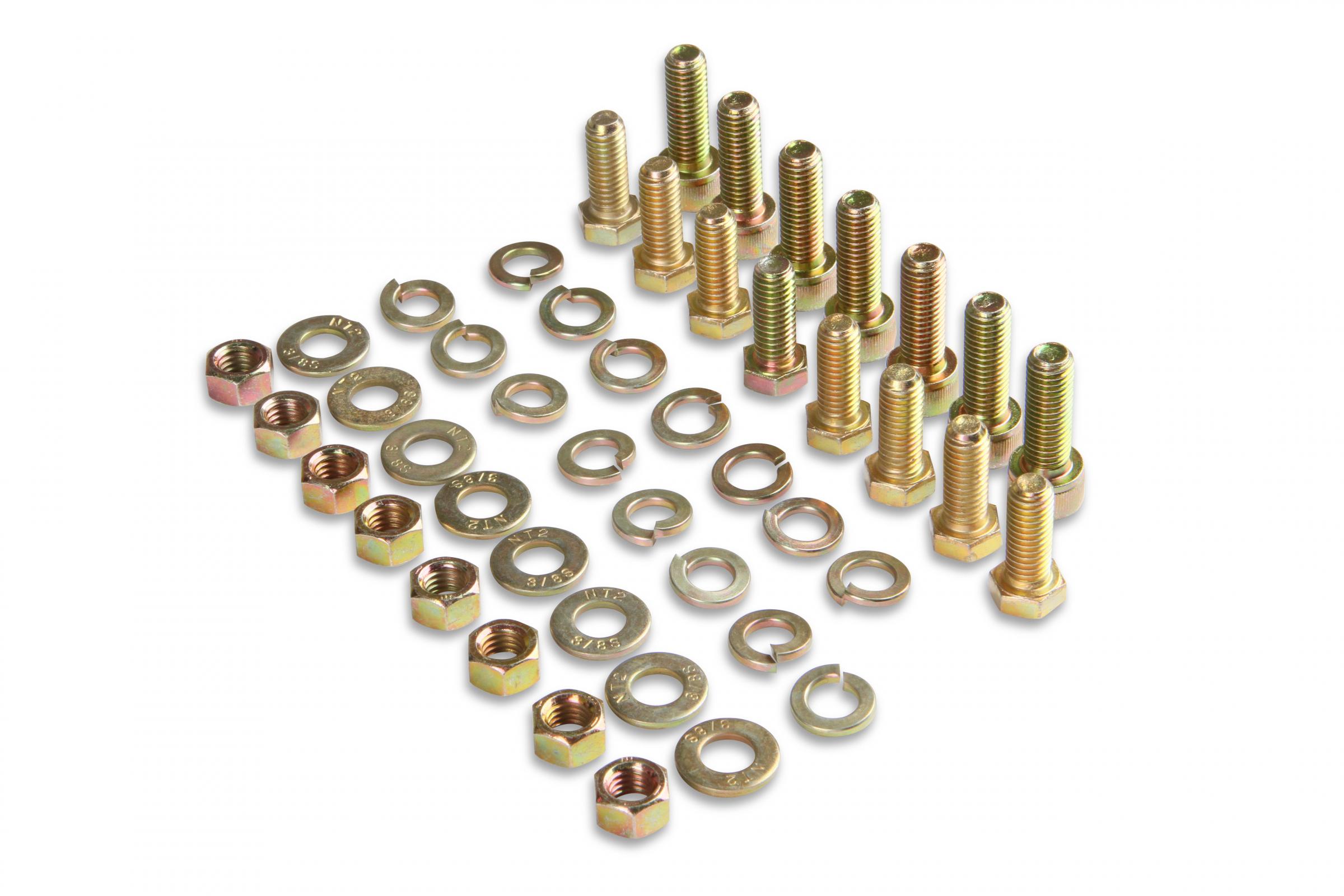

Full Engine Plate and Grade 8 Bolts Included
