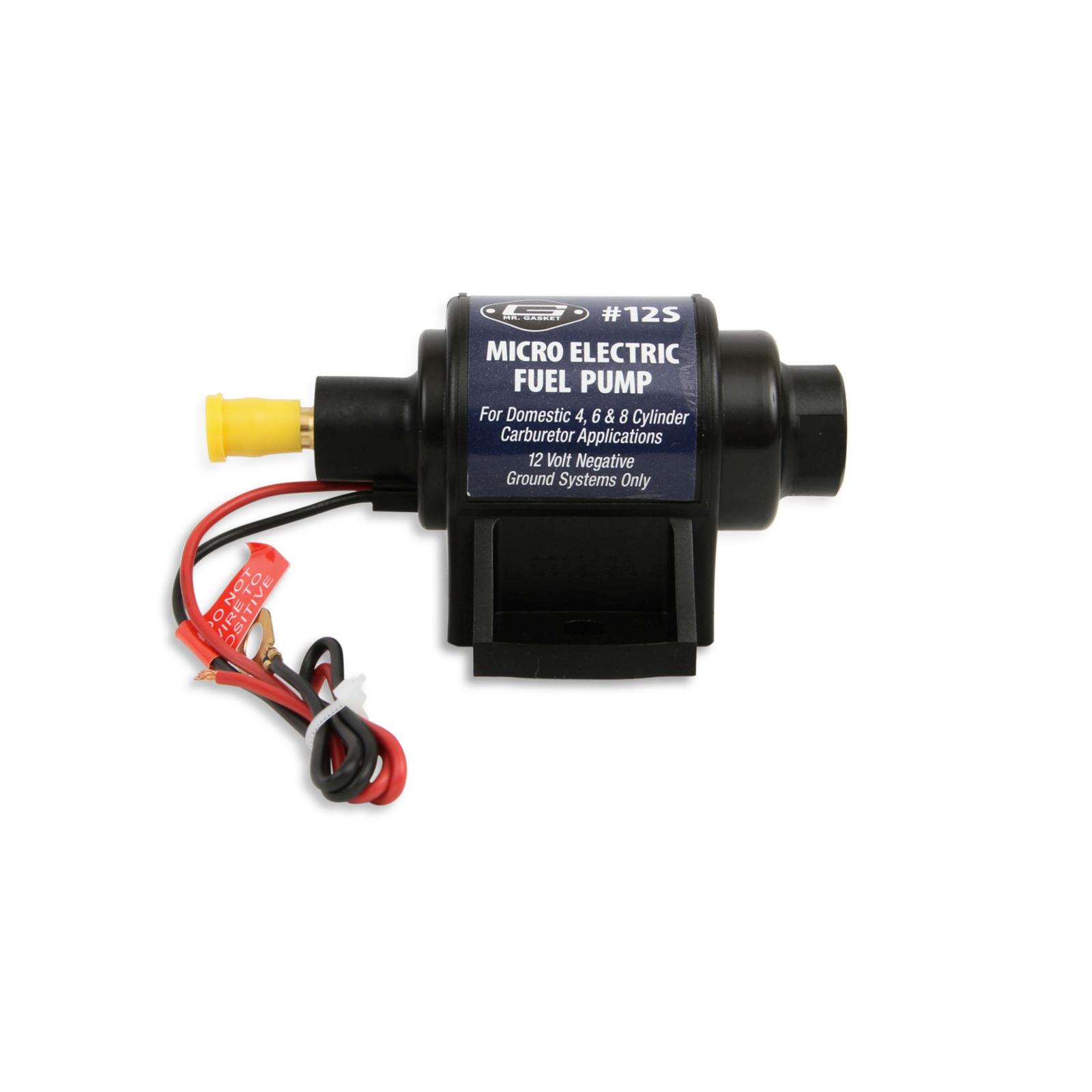

Gravity fed type pump with simple two-wire design. Works on 12 Volt negative ground systems only.

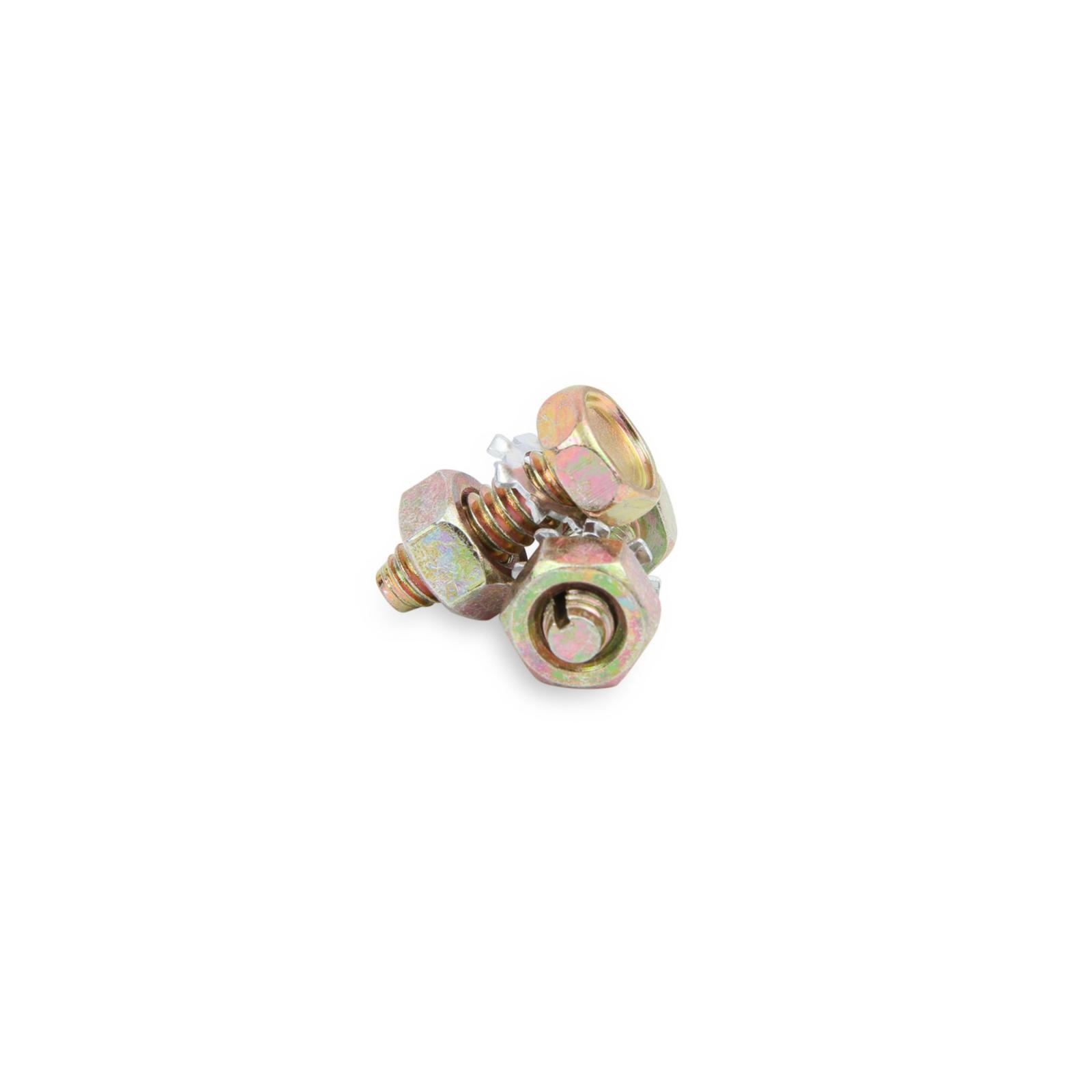

Includes fittings and mounting hardware along with easy to follow DIY instructions. Pumps require approximately one amp average draw at maximum delivery.

Flows 35 GPH (gallons per hours at 4-7 PSI (pounds per square inch). Universal design for most domestic 4, 6, and 8 Inchcylinder carburetor applications.

• Solid-state Worry Free Electronics
• Internal Pressure Regulating
• Universal Design Allows For Easy Installation
• No Diaphragms Or Mechanical Parts To Wear Out
• They Make An Excellent Fuel Transfer or Booster Pump
• Not designed for use on aircraft of any type.
• Hose Barbs Fit 5/16 Inch Fuel Hose
• Self-priming, 2 wire design
• Eliminates vapor lock and flooding

Details:

• Color: Black
• Emission Code: 5
• Free Flow GPH: 35.0
• Fuel Sending Unit Included: No
• Fuel System Type: Carbureted
• Fuel Type: Gasoline
• Gasket Or Seal Included: No
• Material: Polymer
• Max PSI: 7PSI
• Mounting Hardware Included: Yes
• Strainer Included: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wiring Harness Included: No
