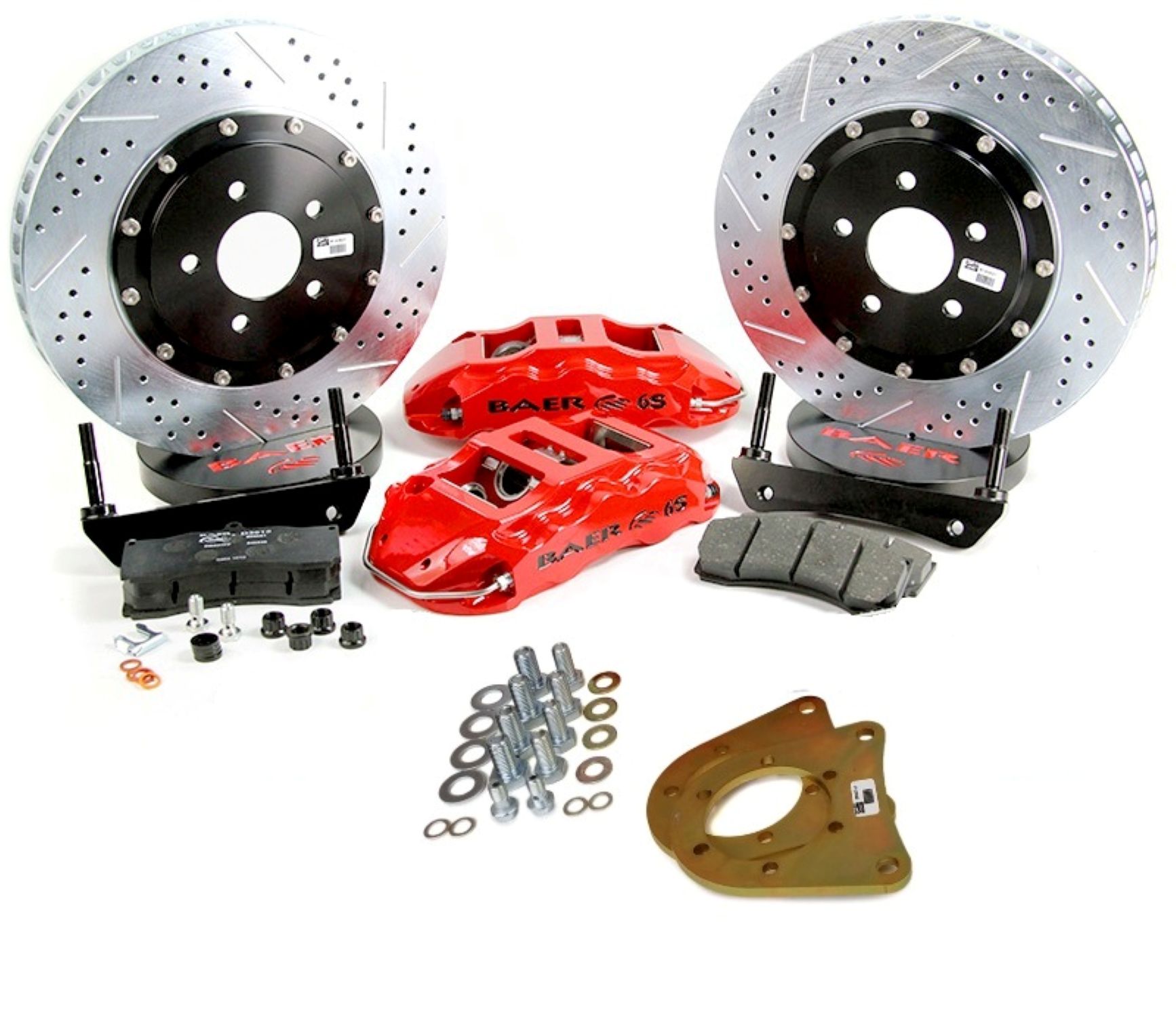

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. compliant dust and weather seals and uses the popular D1247 pad type.

Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included.

The 14 inch Extreme Plus fits most 18 inch or larger wheels.

Features and Benefits:

• 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced 2618 Aluminum Forging
• Powder Coated Finish
• Stainless Steel Pistons, Abutments and Noise Suppression Clips
• Staggered Pistons to Minimize Uneven Pad Wear
• Dual Seals, Dust/Weather & Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Caliper: 6S
• Caliper Color: Black
• Disc Brake Rotor (Front) Outside Diameter: 14.0 Inch
• Applications: GM K5/K10 Truck/SUV 71-87
• Axle: Front
• Disc Brake Caliper (Front) Piston Quantity: 6
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: D1247
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Lug Count: 5 Lug
• Min Wheel Diameter: 18.0 Inch
• Rotor Thickness: 1.25
• Rotor Type: 2-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: N085P
• Wheel Lug/Bolt Pattern: 6x5.50
