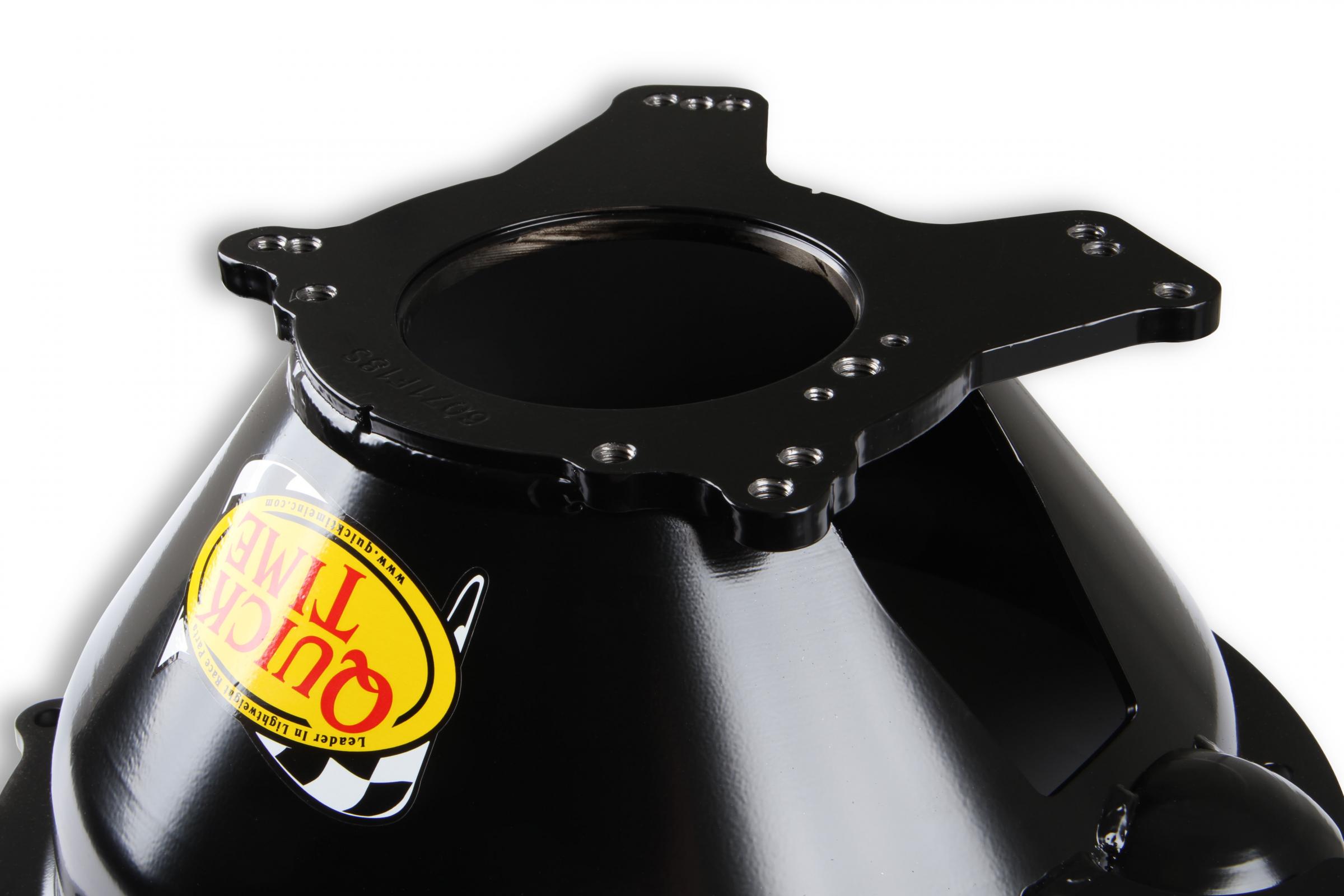

Do you want to put a Tremec Transmission behind your small block Mopar This Bellhousing will let you bolt a Ford TKO, T5 or TR3550 transmission to a 318 or 360 Mopar. Can be used for street, strip or circle track applications. 7.3 inch deep bellhousing will clear the 130 tooth flywheel with 11 inch clutch.

Universal transmission bore will fit 4.85 inch, 4.91 inch, 4.685 inch bores. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate.

Weighs 22 pounds. Fork bracket, block plate and Grade 8 hardware included.

S. F.

I. 6.1 approved.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 130 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: TKX Ford, TR3550, TKO 500/600 Ford, T5 Ford 1983-1993
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Chrysler Small Block
• Engine Make: Mopar
• Make: Mopar
• Weight: 22#
• Engine Plate: RM-6070-C
• Height: 7.300 inch
• SFI Certification: 6.1
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 22
