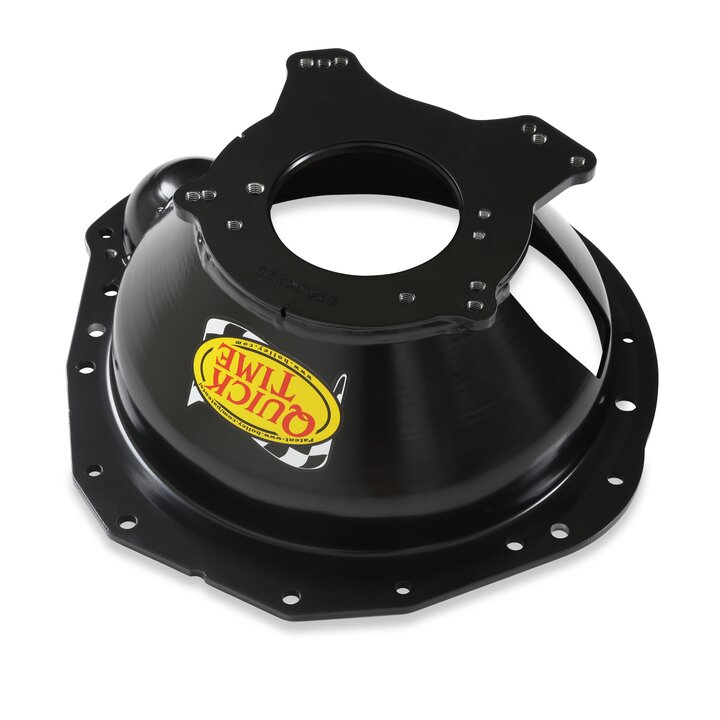

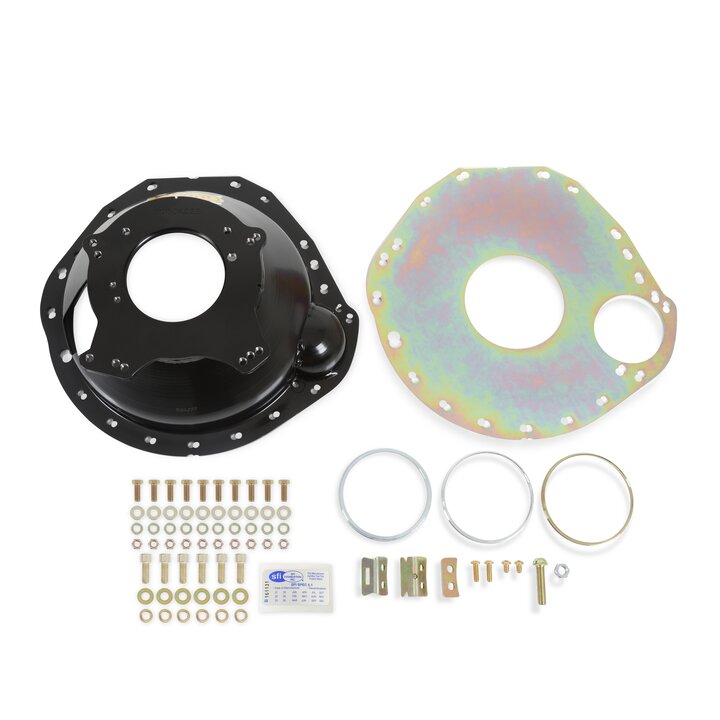

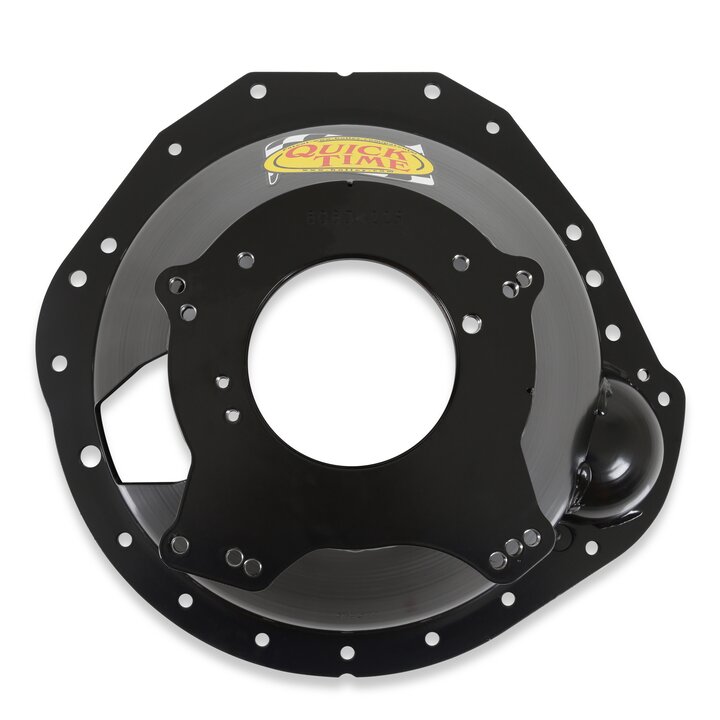

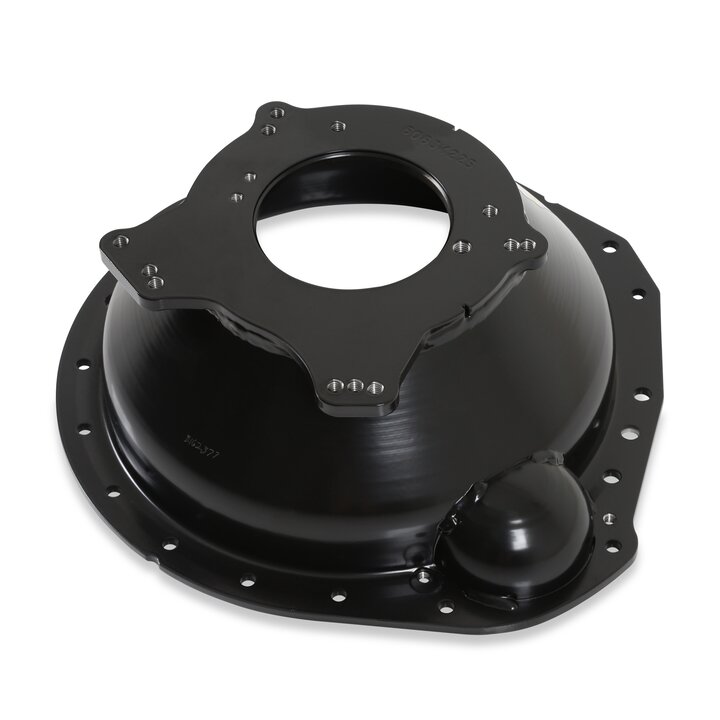

The Quick Time RM-6063 bellhousing connects Small Block Ford 289/302/351C/351W Engines to Ford toploader, Borg Warner T10, and Tremec TKO 500/600 (short shaft) transmissions. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features and Benefits:

100 percent built in the USA

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 157 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: Ford Toploader, T10, TKO 500/600 Ford - Short Shaft
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Ford 351C, Ford 351W, Ford Small Block, Ford 289, Ford 302
• Engine Make: Ford
• Make: Ford
• Weight: 22#
• Engine Plate: RM-6063-C
• Height: 6.300 inch
• SFI Certification: 6.1
• Trans Bore: 4.685 / 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.685 / 4.85 / 4.91 / 5.12 inch
• Weight (lb): 22
