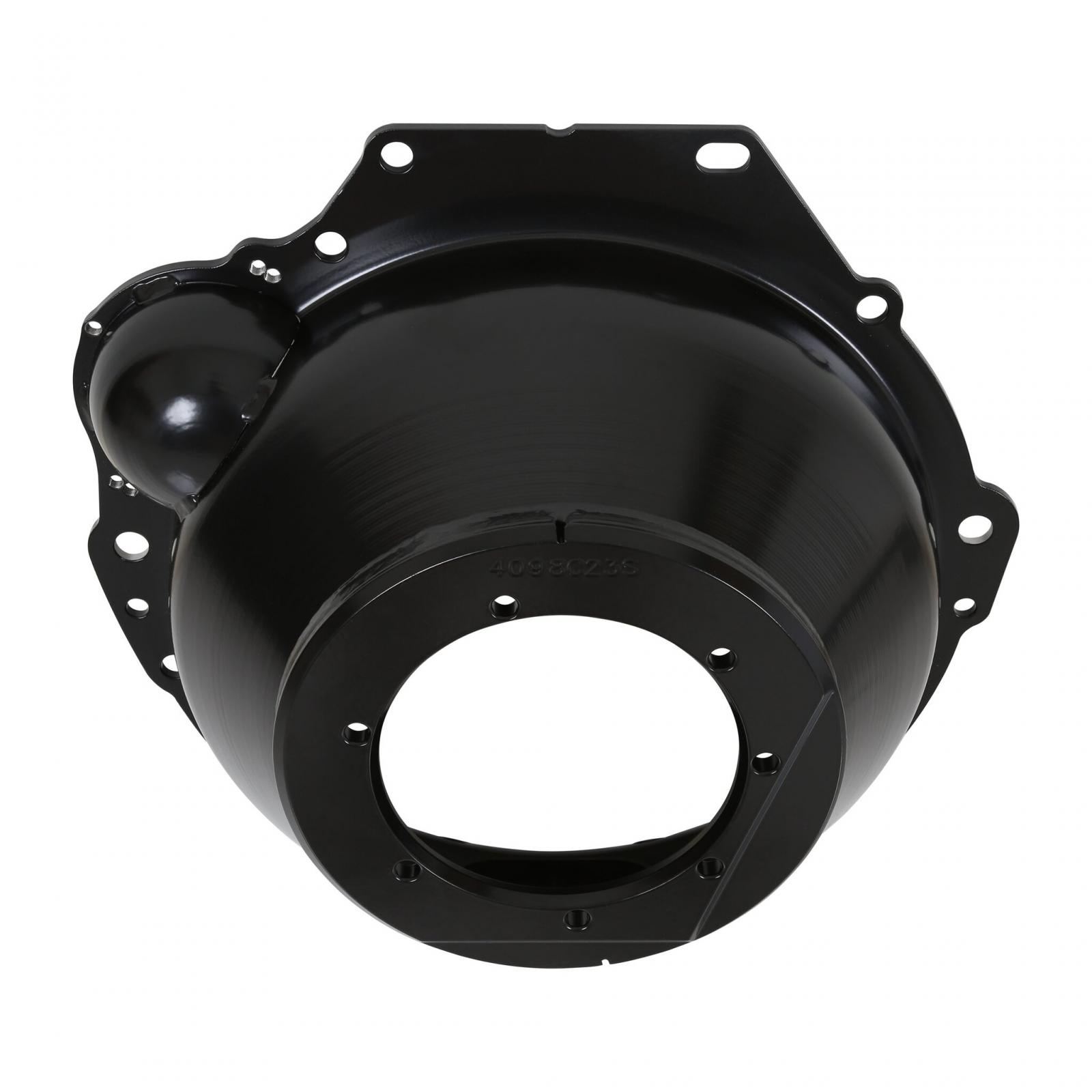

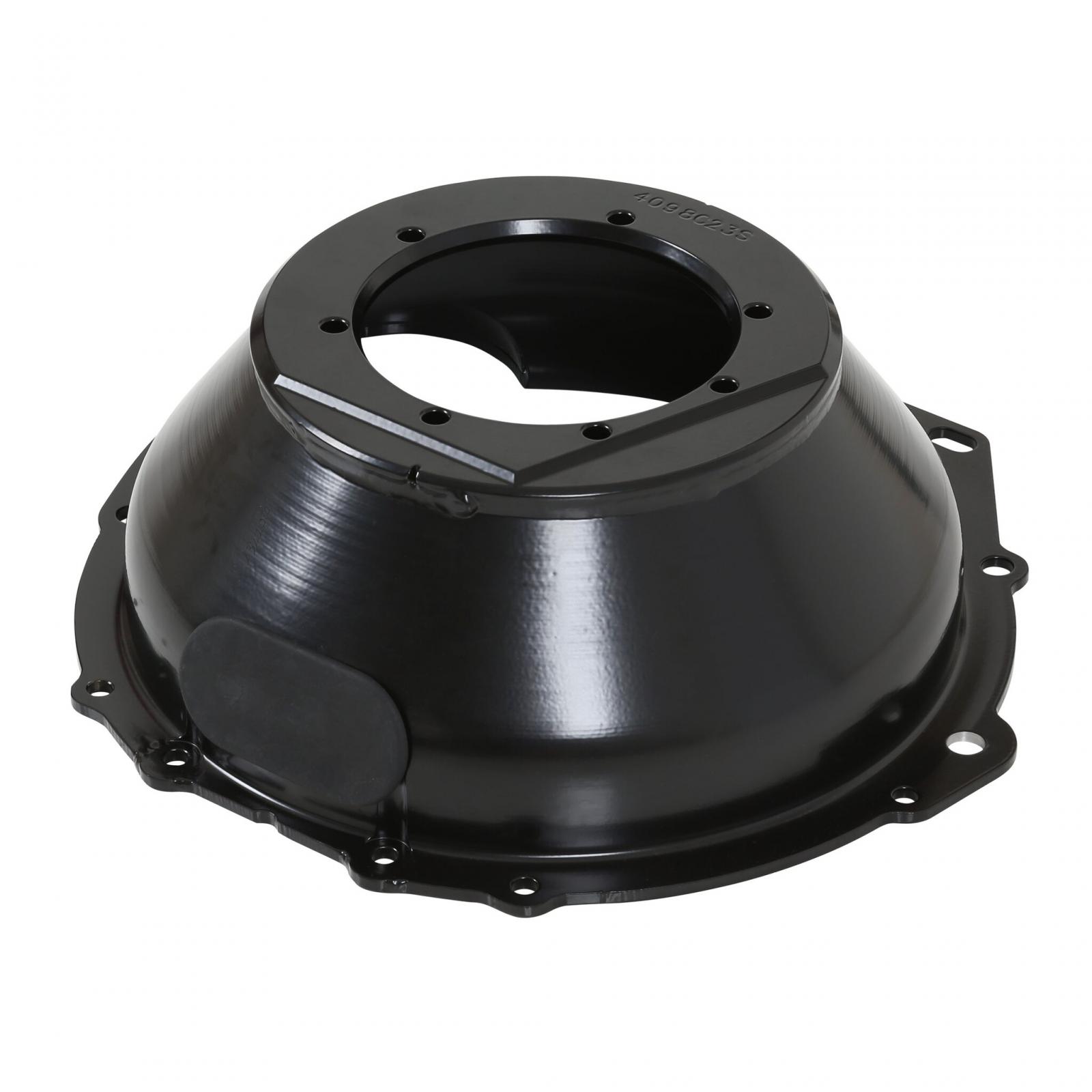

This bellhousing fits 6-Cylinder Ford Falcon Barra BA, BF, and FG to Ford C4 automatic transmission. Ideal for the drag strip, circle track, and high-performance street applications.

Features and Benefits:

• Patent on 16 points of Bellhousing Design & Process
• Built from high grade steel - work hardened to over 80,000 PSI strength. Over two times the strength of typical steel bellhousings.
• Bellhousing cone is spin formed not rolled or stamped. This process provides consistent wall thickness and incredible strength.
• Laser cut components are added to assembly and CNC machined with extreme precision to provide a bellhousing that is parallel & centered to within .003 inch.
• Precision manufacturing method permits Quick Time bellhousings to be the most dimensionally stable bellhousing available, permits less drivetrain wear.
• Designed to be the lightest, strongest and most accurate bellhousing available.

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Patented: yes
• SFI Approved: Yes
• Transmission: C4
• Transmission Type: Automatic
• Certification: 30.1 SFI
• Clutch Operation: Automatic
• Engine: Ford Falcon Barra 4.0 BA, Ford Falcon Barra 4.0 FG, Ford Falcon Barra 4.0 BF
• Engine Make: Ford
• Make: Ford
• Weight: 26#
• Engine Plate: RM-4098-C
• Height: 5.836
• SFI Certification: 30.1
• Trans Bore: 6.132
• Trans. Bore Diameter: 6.132 inch
• Weight (lb): 26
• Flexplate: 157/162 tooth

Associated Comments:

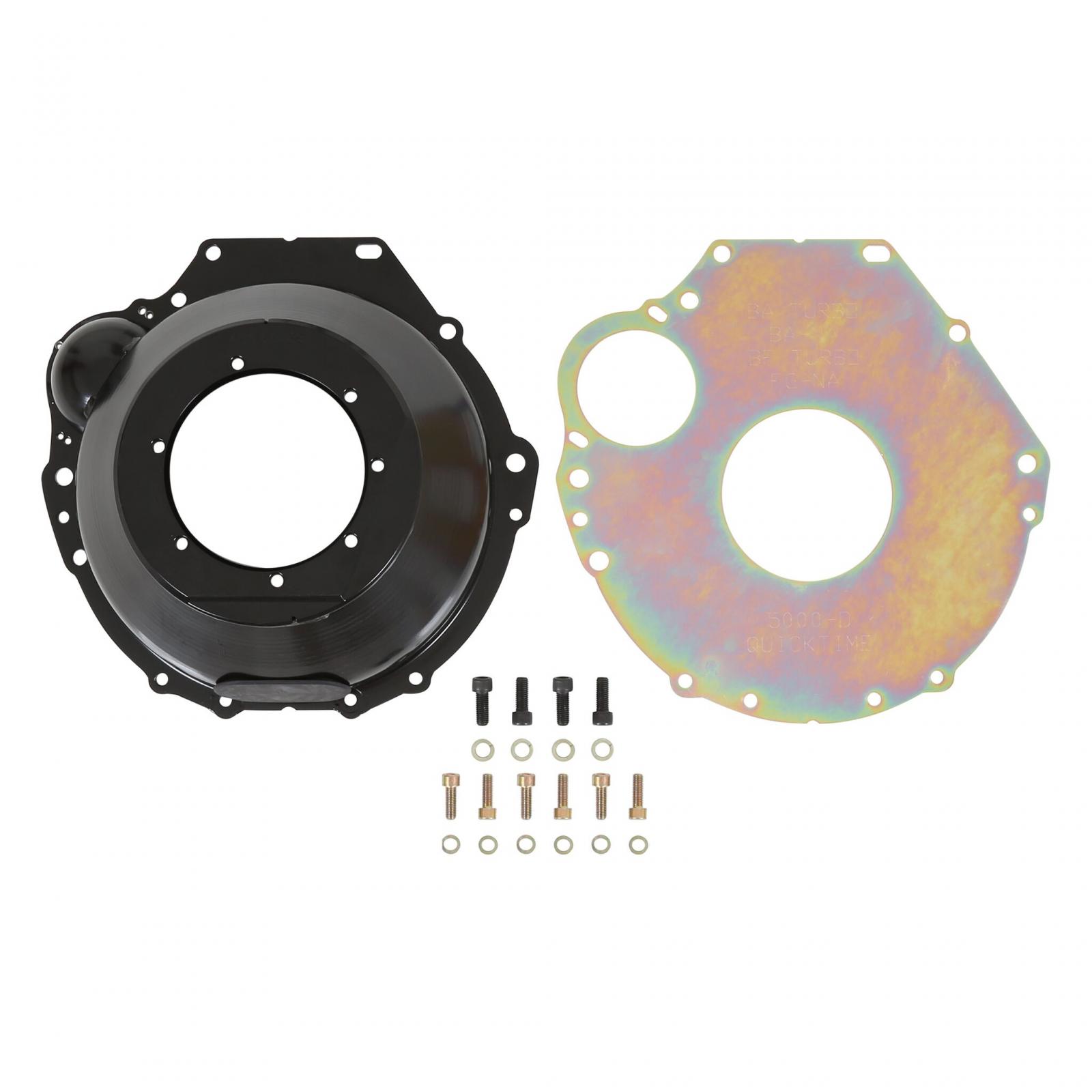

Full engine plate and grade 8 bolts included
