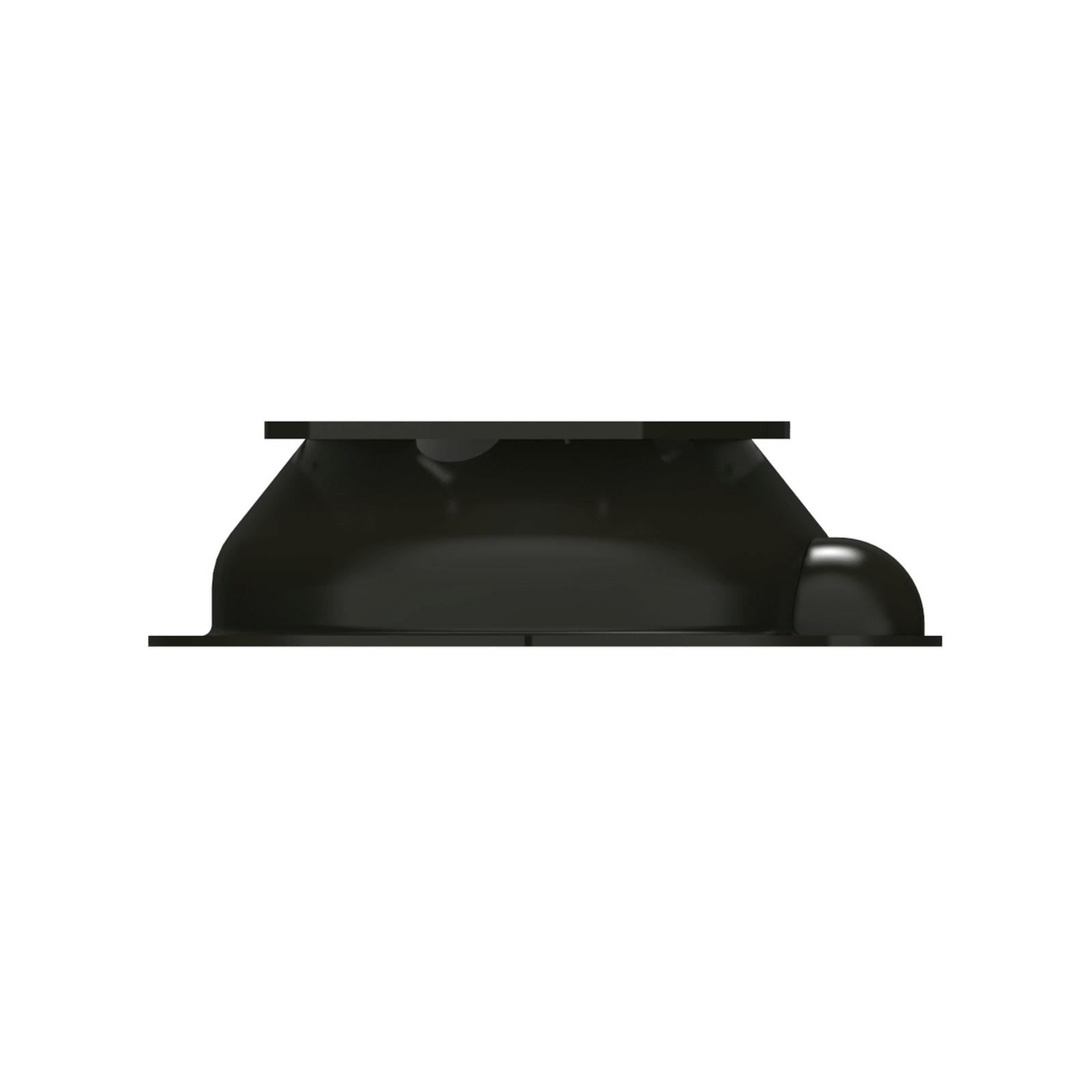

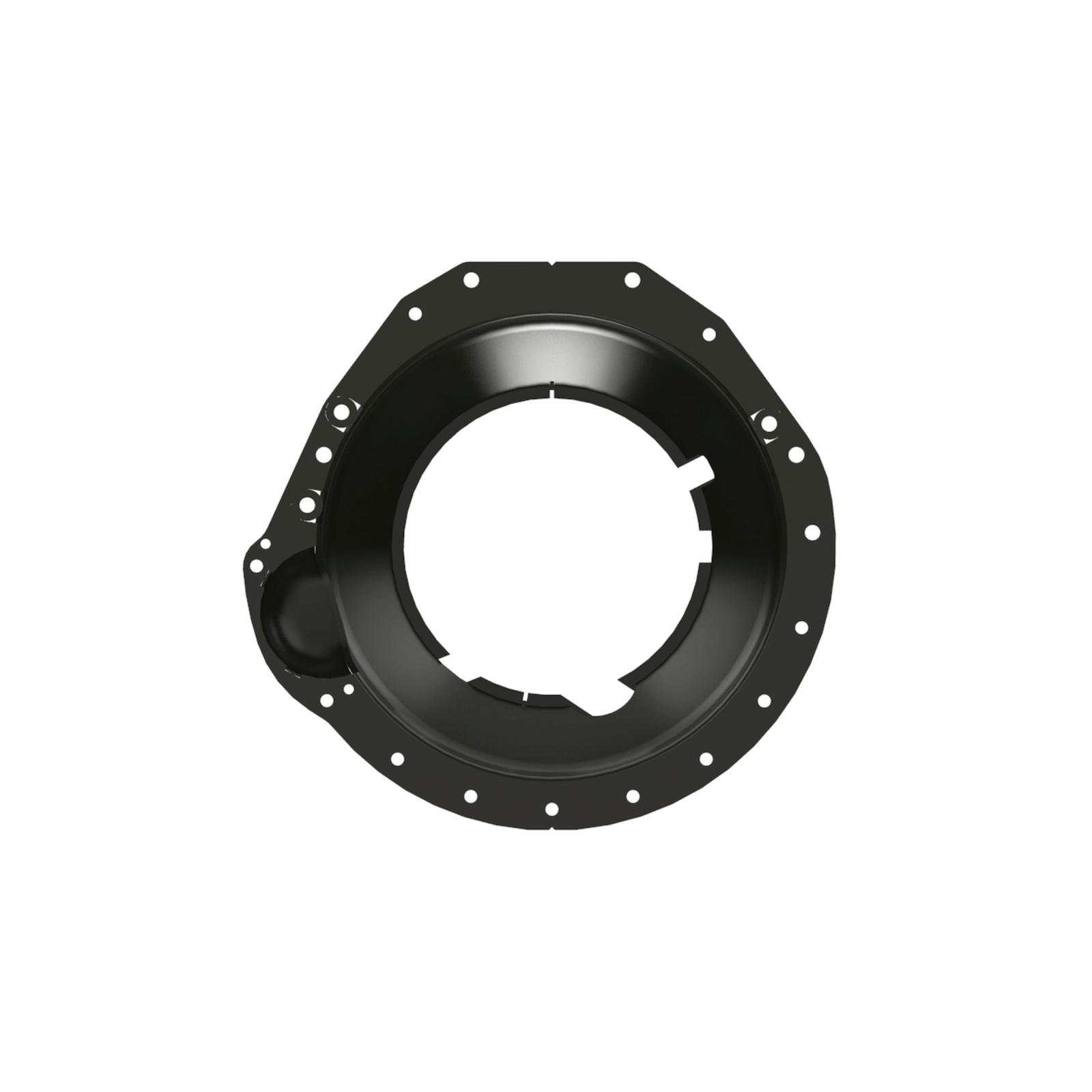

The Quick Time RM-8031-164 bellhousing connects 289/302/351W/351c Engines to Ford T56 or Ford T56 Magnum (fork at 7:00) Transmissions. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 164 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: T56 Magnum, T56 Ford
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic or Pre 1993 Pull Cable
• Engine: Ford 289, Ford 351W, Ford 302, Ford 351C, Ford Small Block
• Engine Make: Ford
• Make: Ford
• Weight: 22lbs
• Clutch: 11
• Engine Plate: RM-8031-164-C
• SFI Certification: 6.1
• Weight (lb): 22
• Included Hardware: Engine plate and grade 8 bolts
