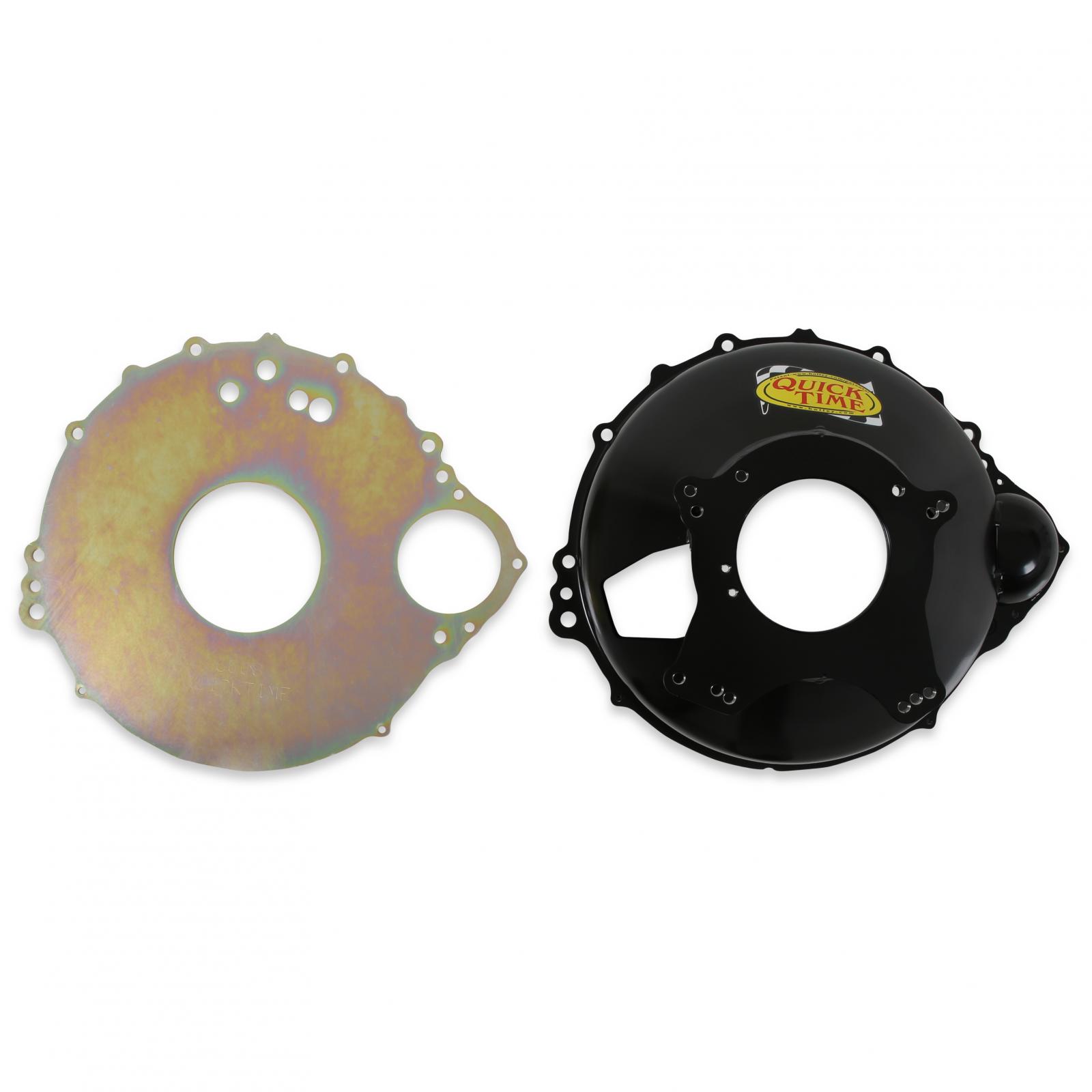

The Quick Time RM-6056 bellhousing connects Ford FE big block engines to Ford TKO500/600, T5 Mustang, or TR3550 transmissions. This bellhousing is not S.

F. I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 184 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: No
• Transmission: T5 Ford 1983-1993, TKO 500/600 Ford, TR3550, TKX Ford
• Transmission Type: Manual
• Clutch Operation: Hydraulic
• Engine: Ford FE Block, Ford 427, Ford 390, Ford 352, Ford 428
• Engine Make: Ford
• Make: Ford
• Weight: 22#
• Clutch Diameter: 12

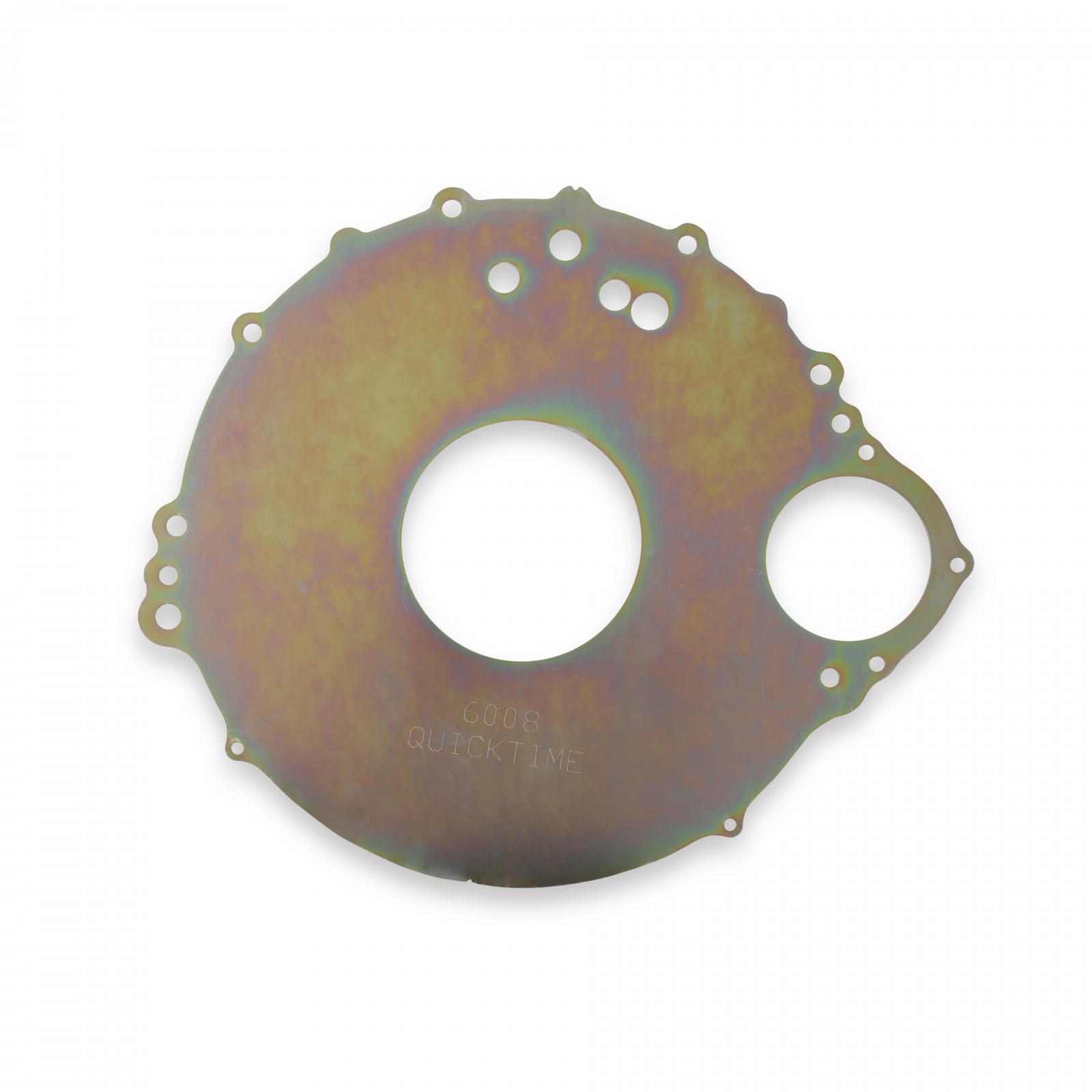

• Engine Plate: RM-6008
• Height: 7.150 inch
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 22
