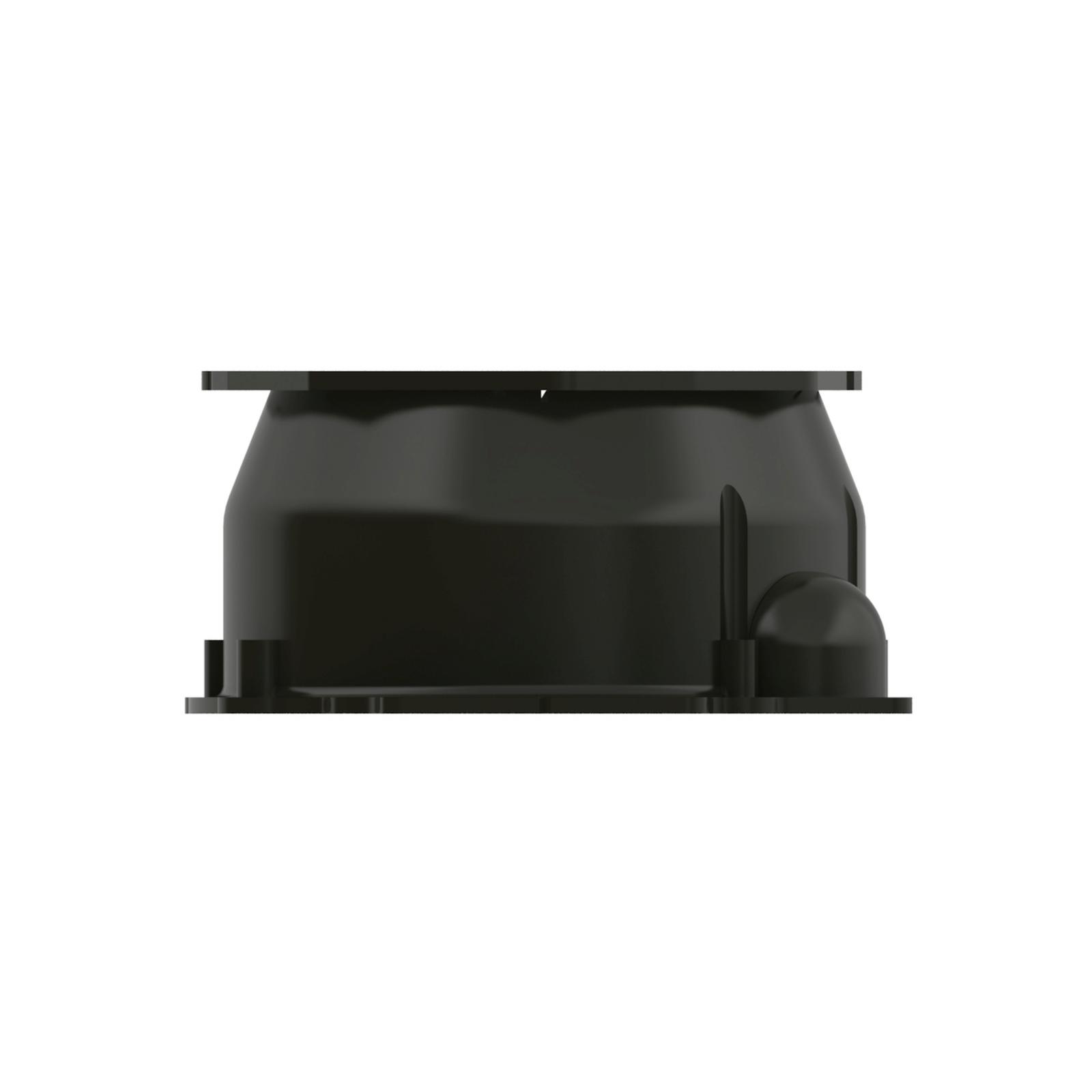

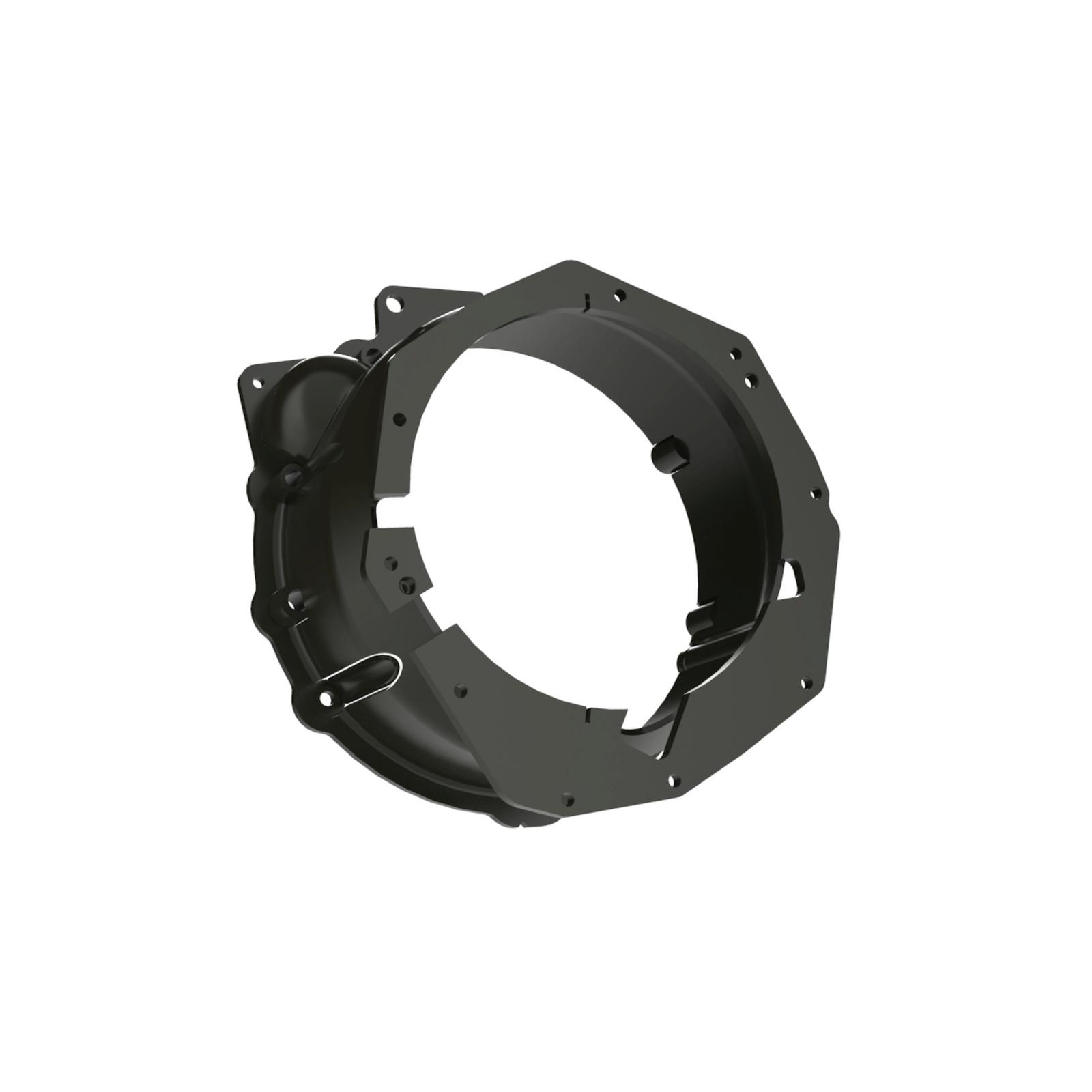

The Quick Time RM-4089 bellhousing connects E36 BMW M52 Engines (inline six) to Chevy T56 or Chevy Magnum T56 Transmissions. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 113 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: T56 GM, T56 Magnum GM
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: E36 BMW M52
• Engine Make: BMW
• Make: BMW
• Weight: 21 lbs
• Clutch: 10.5 Clutch Disc
• Engine Plate: RM-4089-C
• SFI Certification: 6.1
• Weight (lb): 21
• Included Hardware: Engine plate and grade 8 bolts
