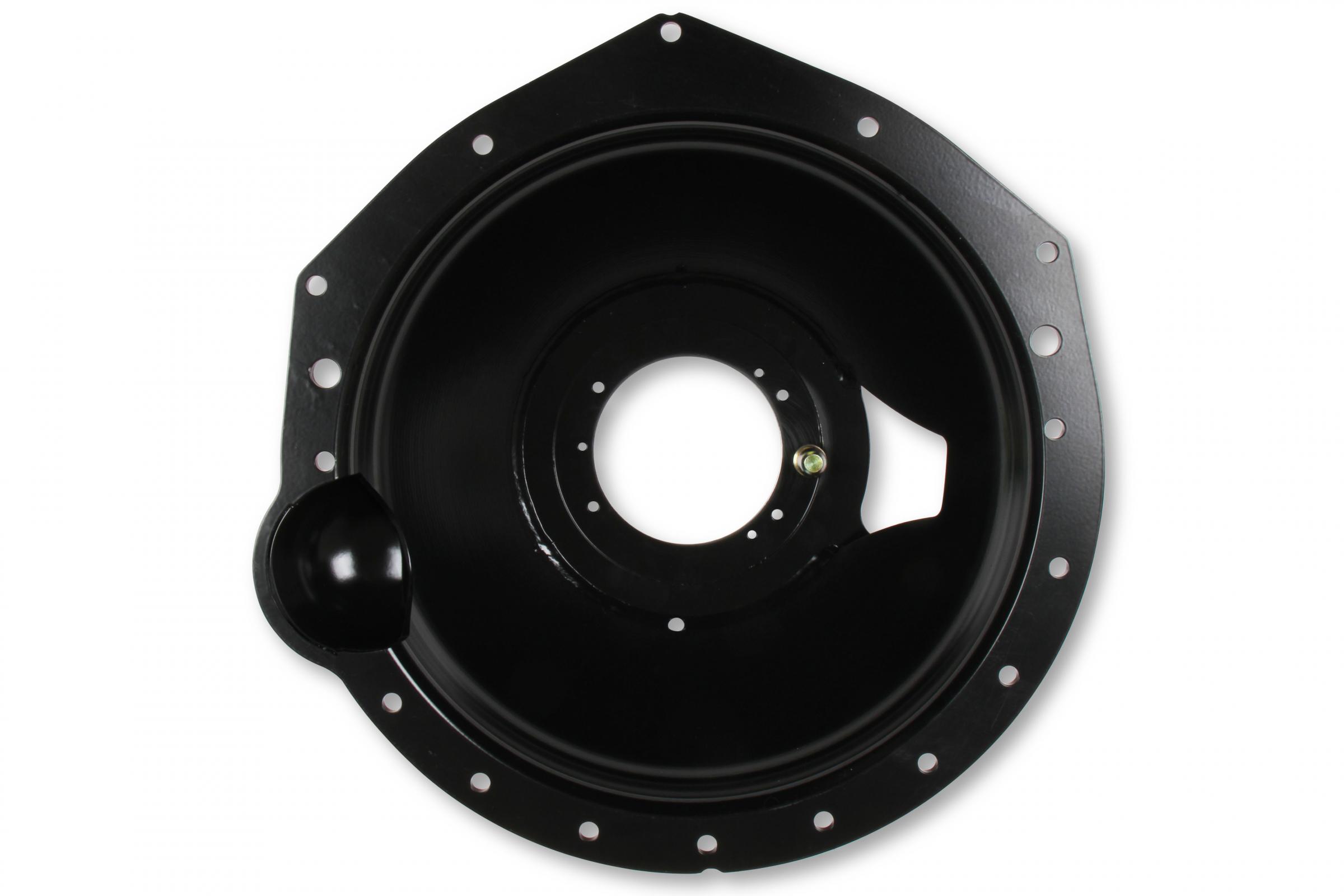

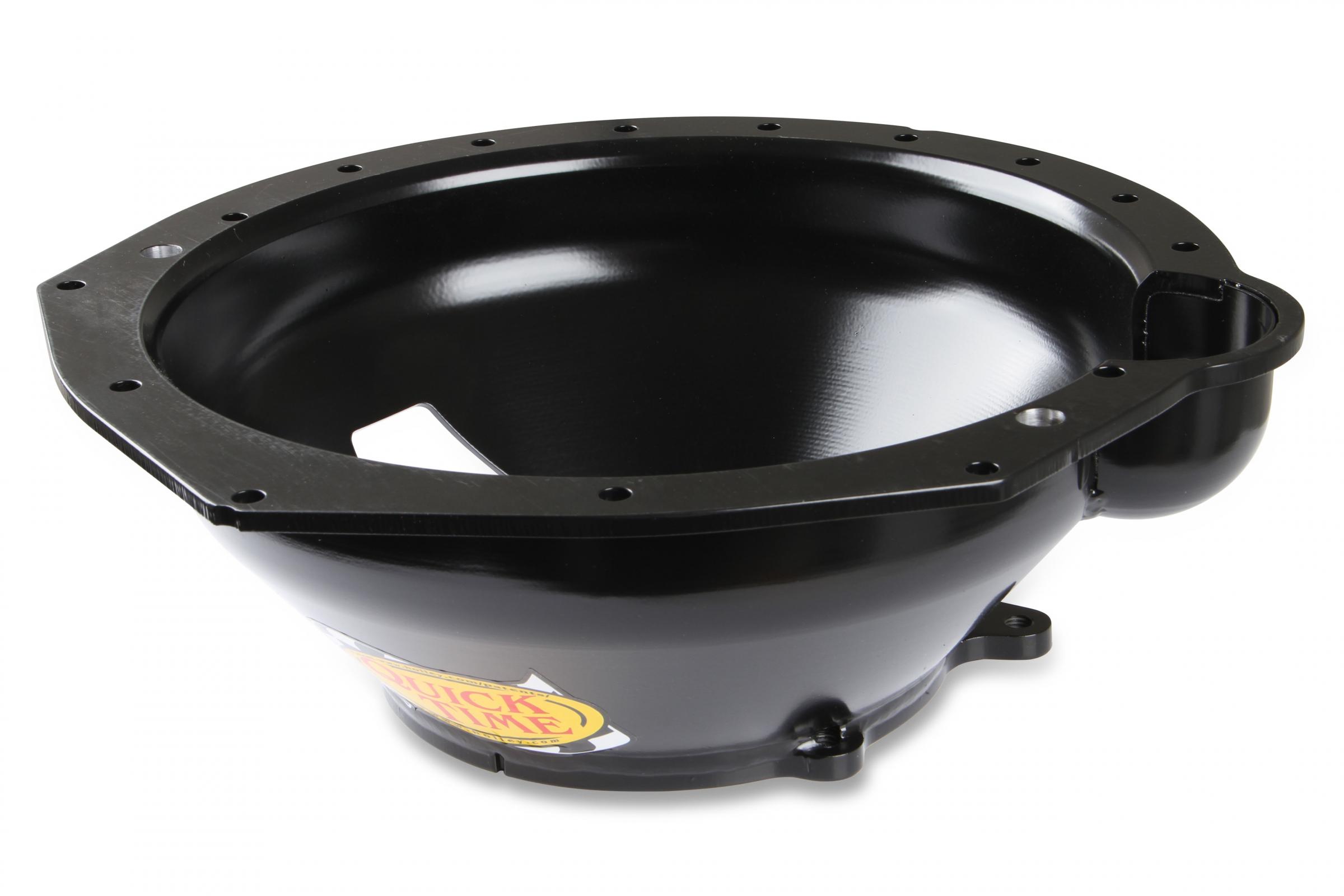

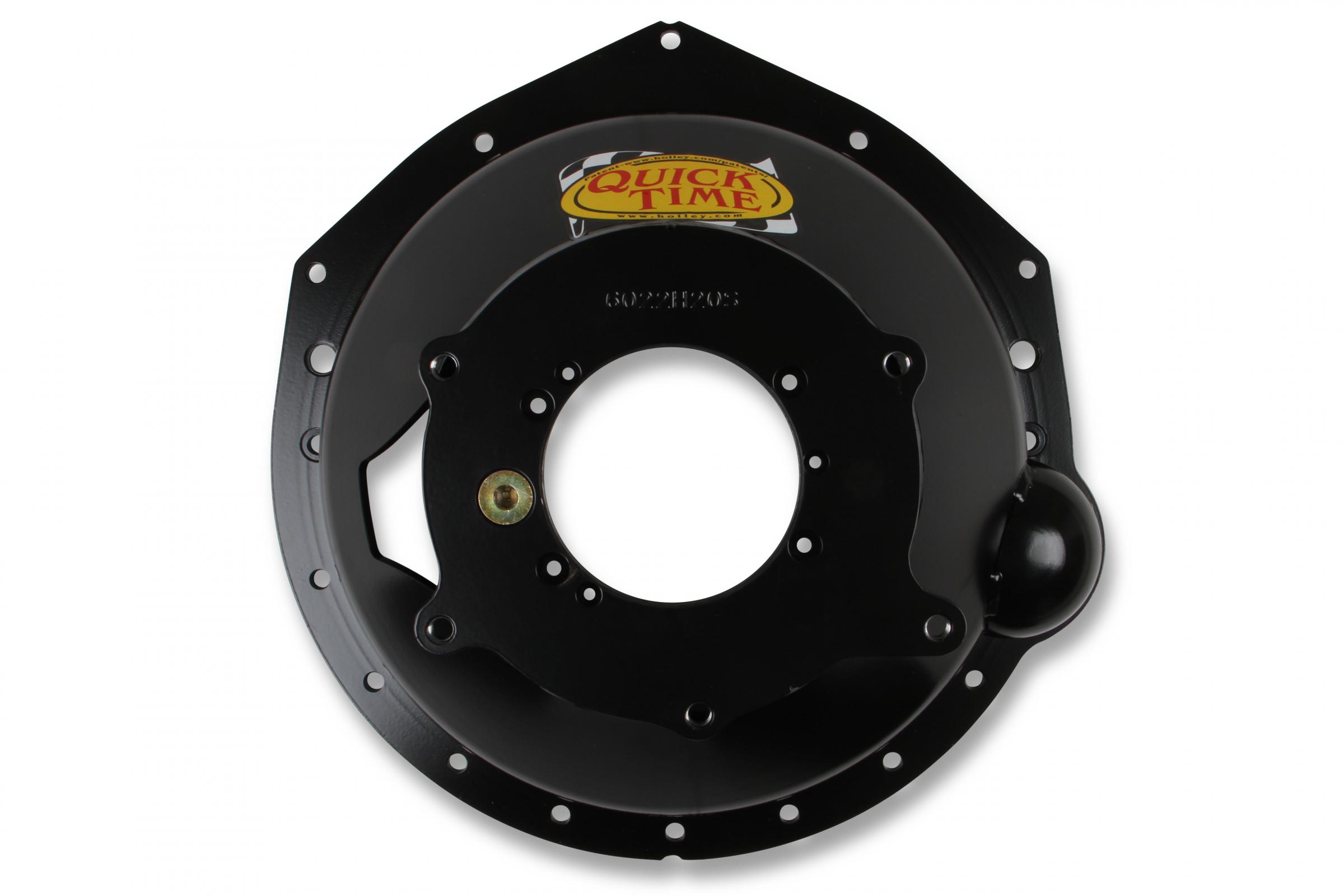

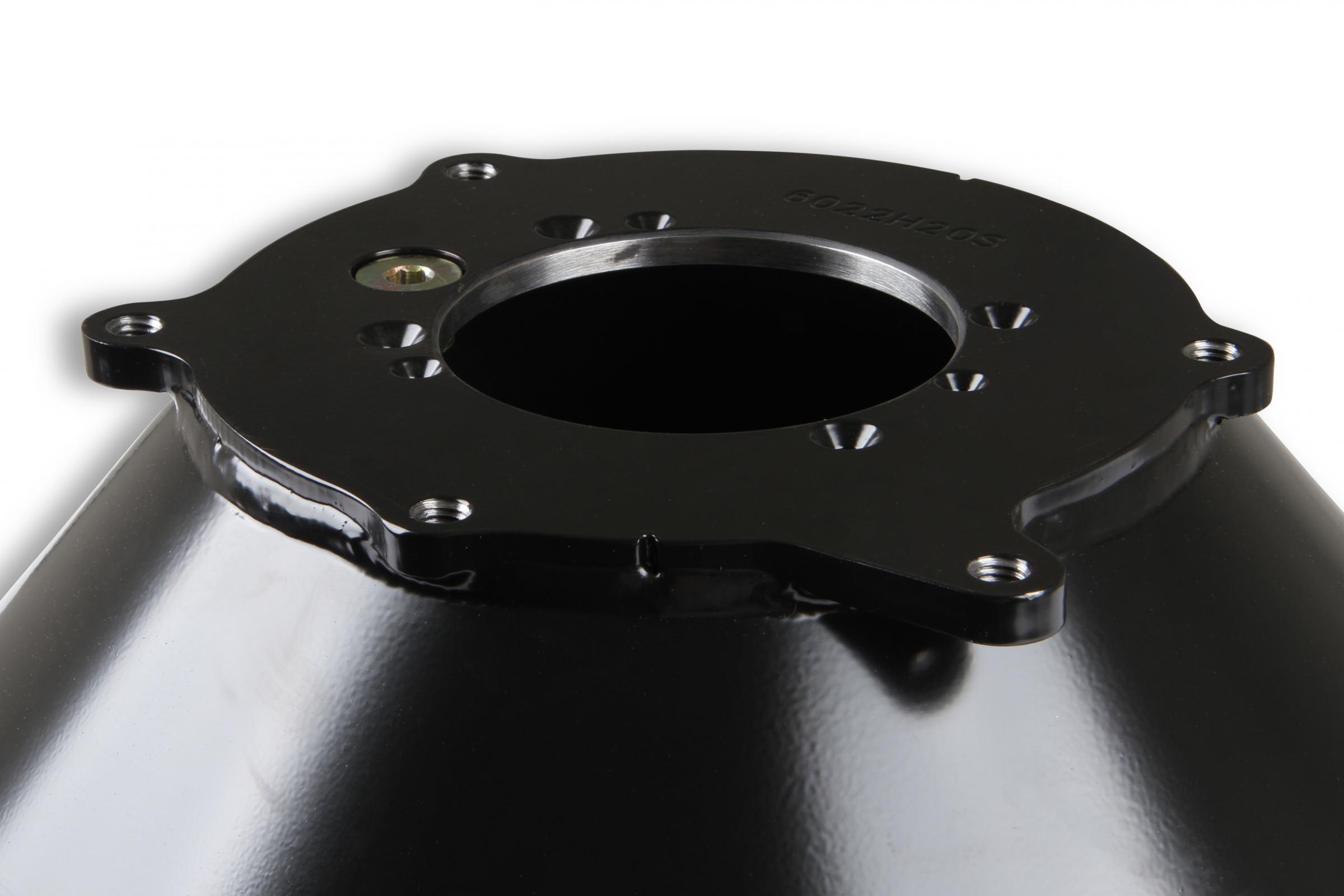

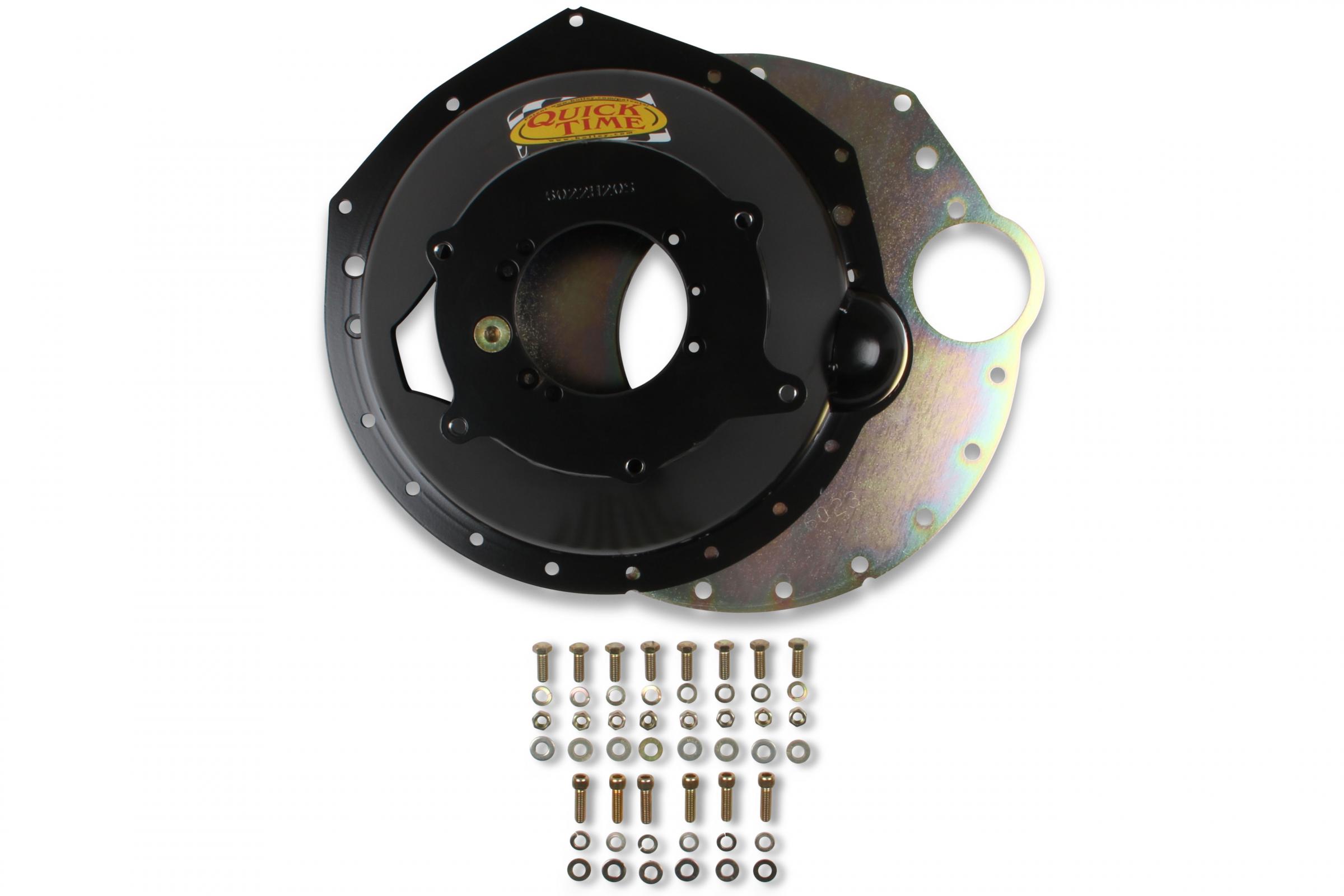

The Quick Time RM-6022 bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, TKO, and TKX transmissions. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material.

This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 153 Tooth, 168 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: Saginaw, Muncie, TKO 500/600 GM, Jerico, Brinn Racing, TKX GM, T5 GM, T10, Bert Racing, Richmond, Falcon
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: GM Big Block, Chevrolet Small Block Gen I
• Engine Make: Chevrolet
• Make: Chevrolet
• Weight: 22#
• Clutch Diameter: 11
• Engine Plate: RM-6023-C
• Height: 6.290 inch
• SFI Certification: 6.1
• Trans Bore: 4.687
• Trans. Bore Diameter: 4.687 inch
• Weight (lb): 22

Associated Comments:

Std LH Fork or Hyd. Bearing
