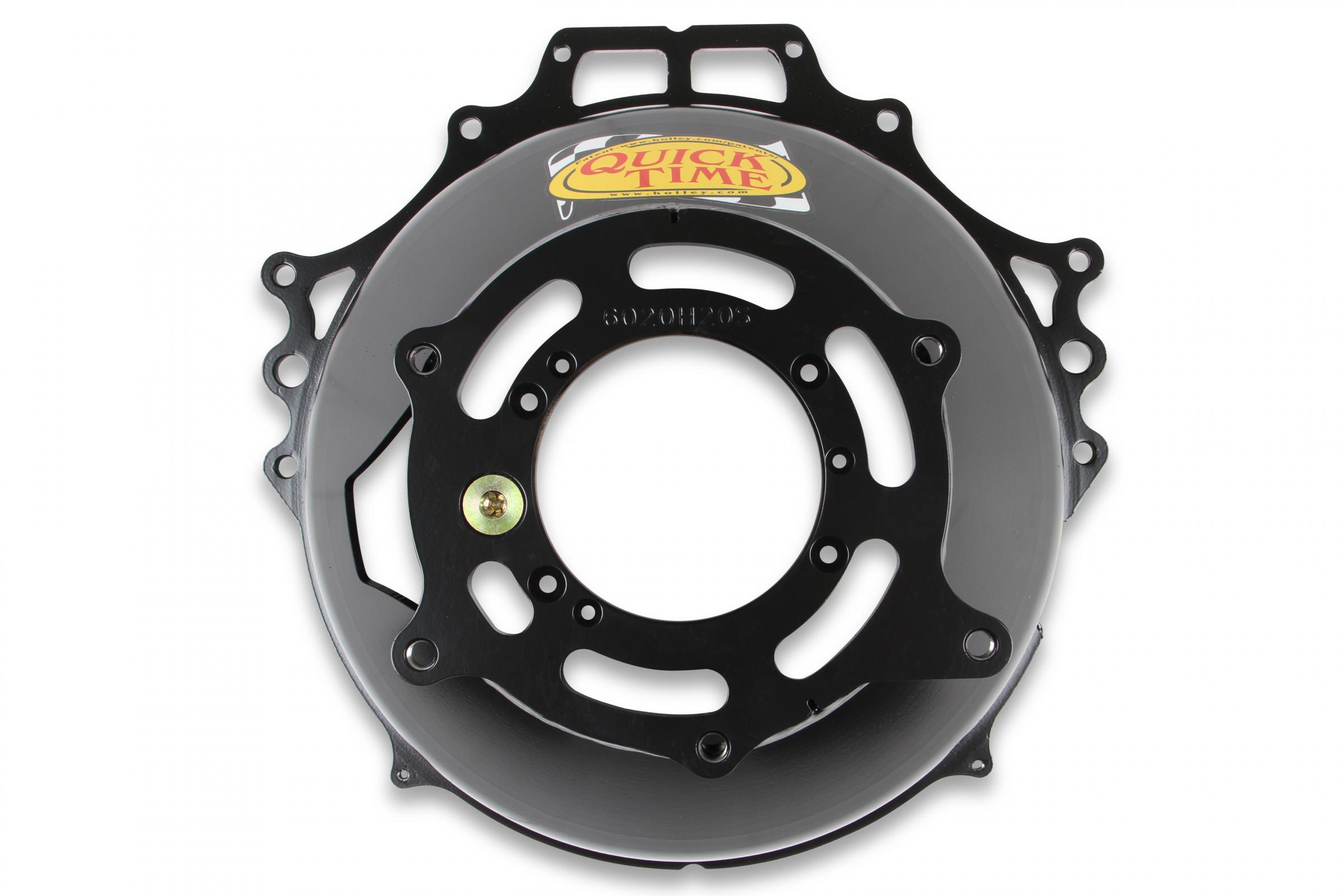

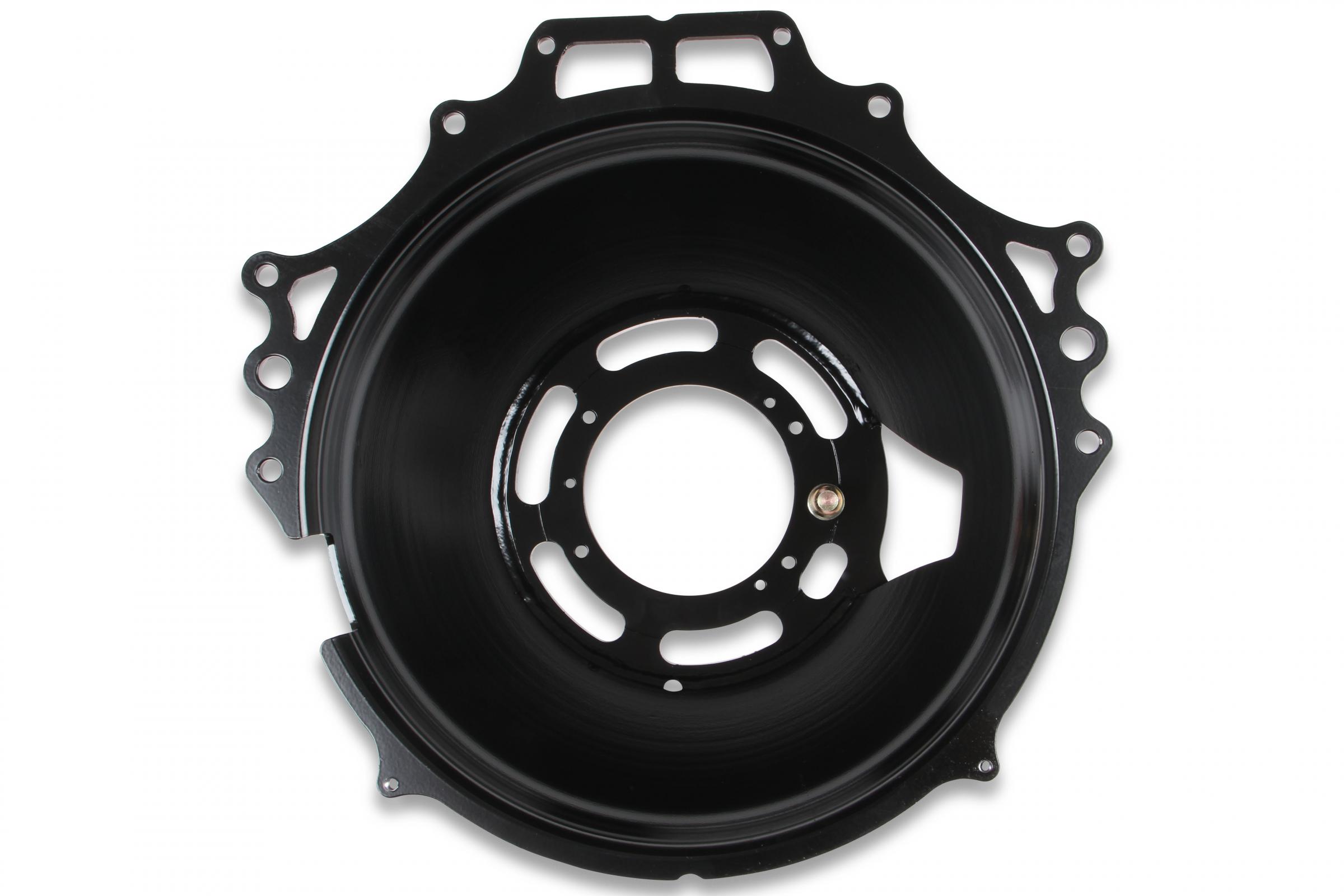

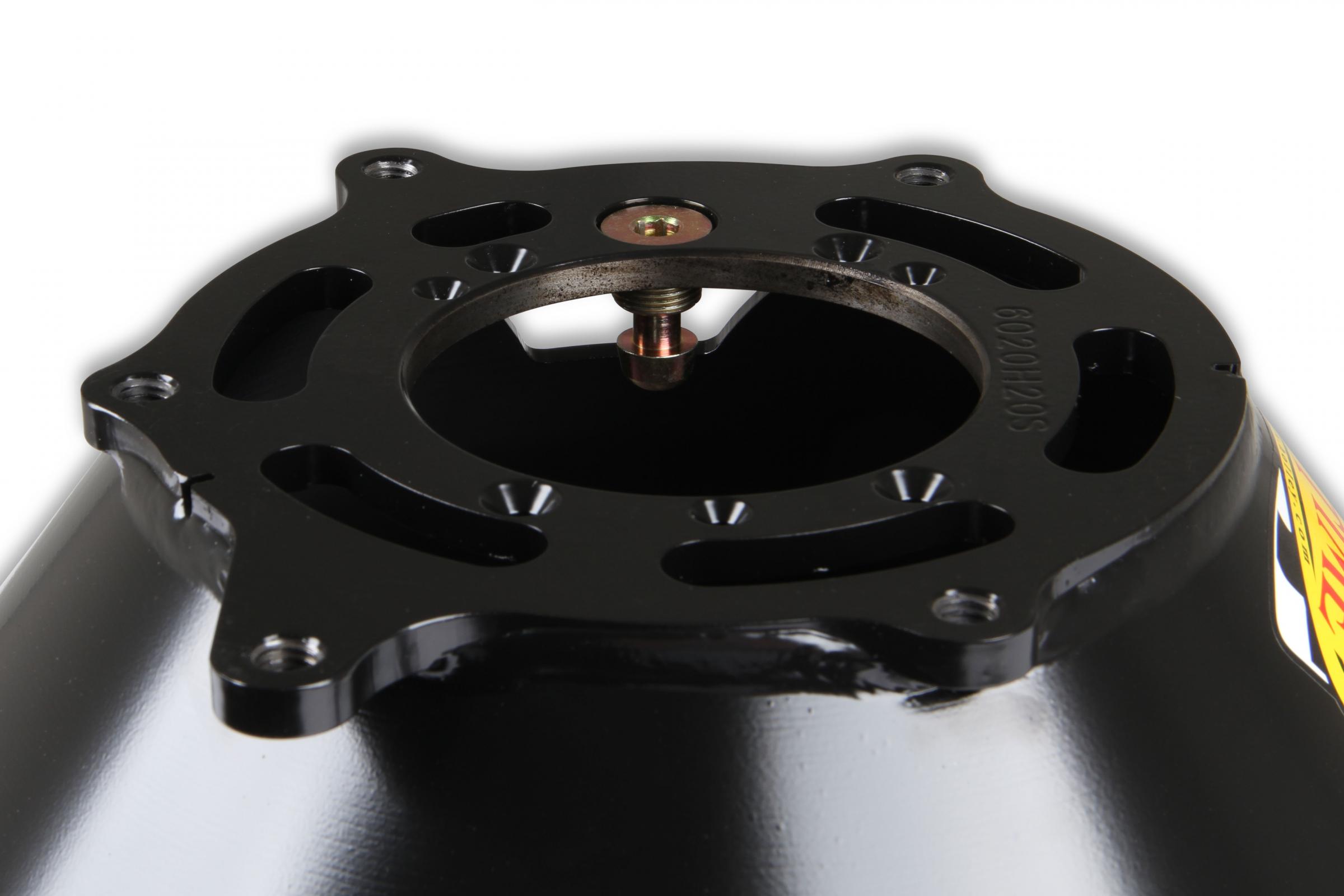

This bellhousing is designed for circle track, strip or street application. This bellhousing fits Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10.

Fits 153 tooth flywheel and 10.5 inch clutch. Is 6.29 inch deep.

Built from high-grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 inch.

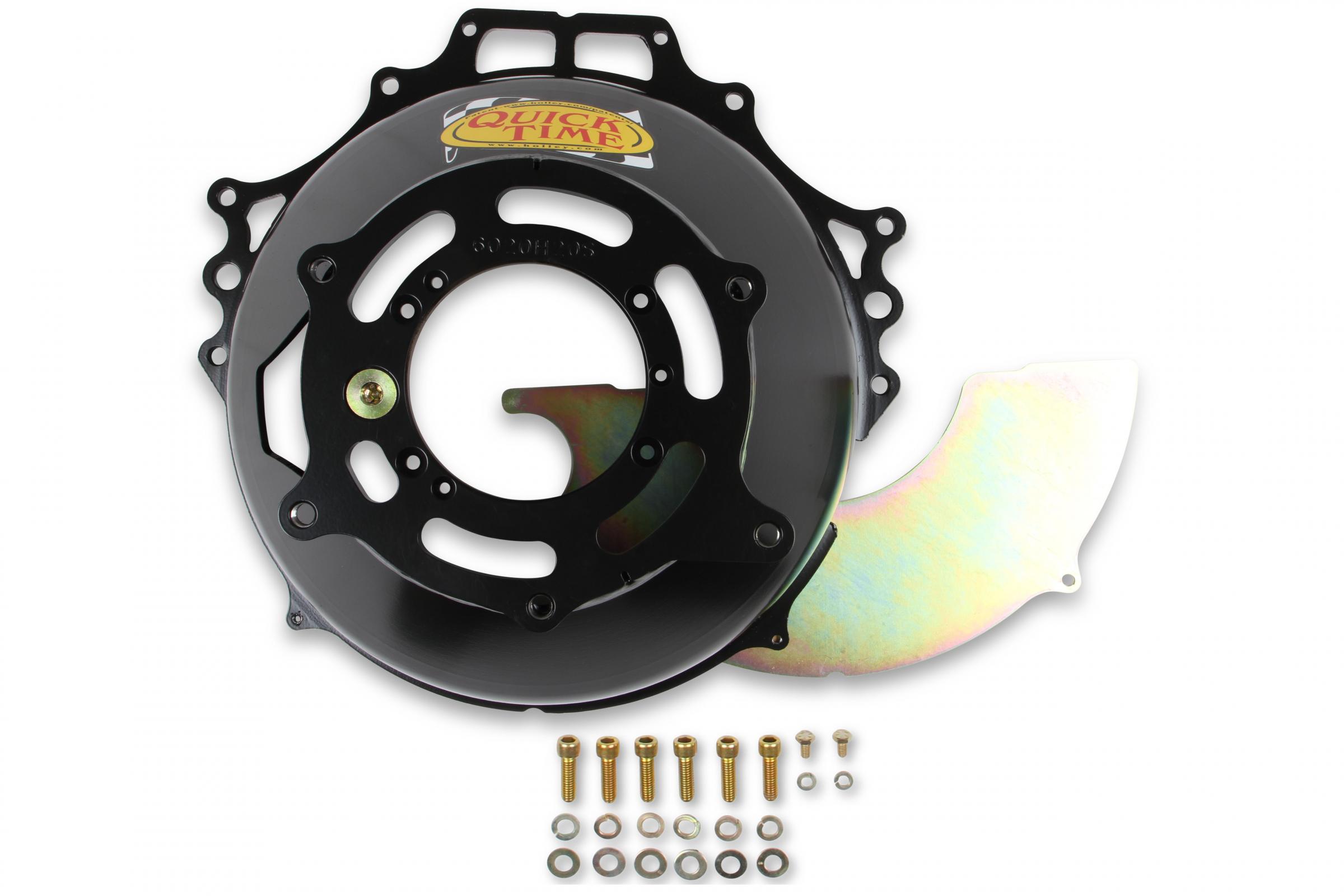

This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included.

Note: Must use mini starter. Non S.

F. I. approved.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 153 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: No
• Transmission: Saginaw, T10, Muncie, TKO 500/600 GM, Falcon, TKX GM, Bert Racing, Richmond, Brinn Racing, T5 GM, Jerico
• Transmission Type: Manual
• Clutch Operation: Hydraulic
• Engine: GM Big Block, Chevrolet Small Block Gen I
• Engine Make: Chevrolet
• Make: Chevrolet
• Weight: 18#
• Clutch Diameter: 10.5
• Engine Plate: RM-6010-C
• Height: 6.290 inch
• SFI Certification: Not SFI Certified
• Trans Bore: 4.687
• Trans. Bore Diameter: 4.687 inch
• Weight (lb): 18

Associated Comments:

Std LH Fork or Hyd. Bearing
