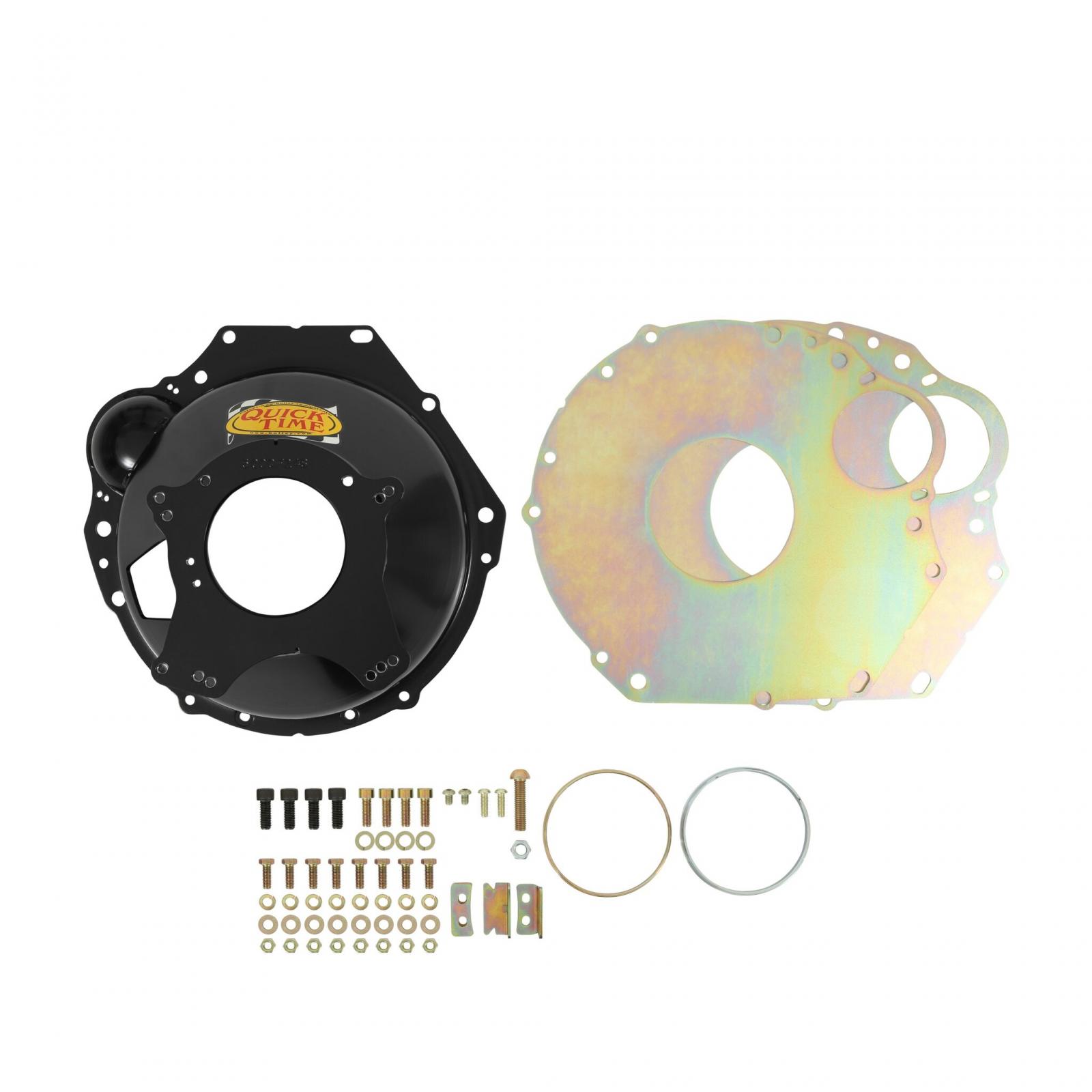

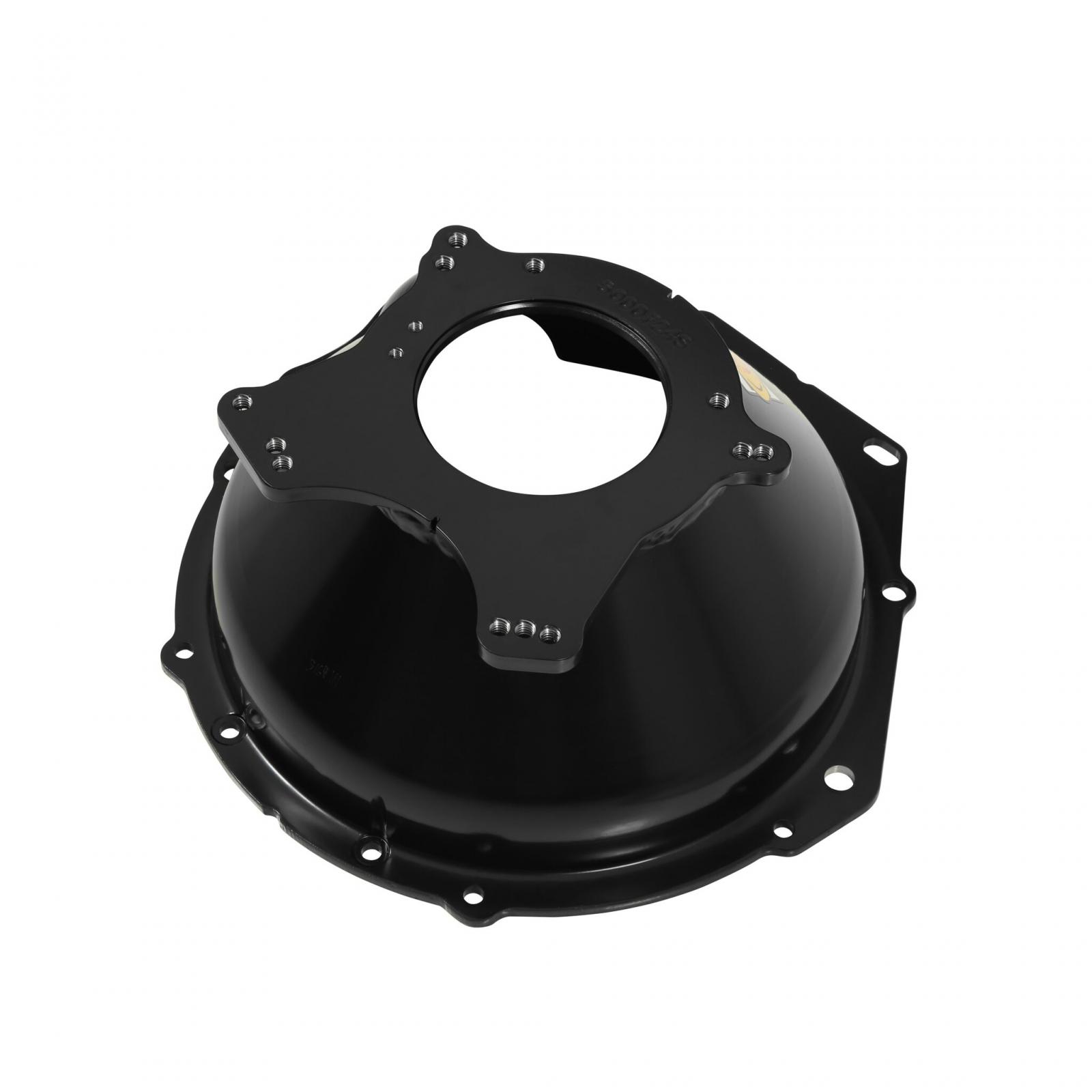

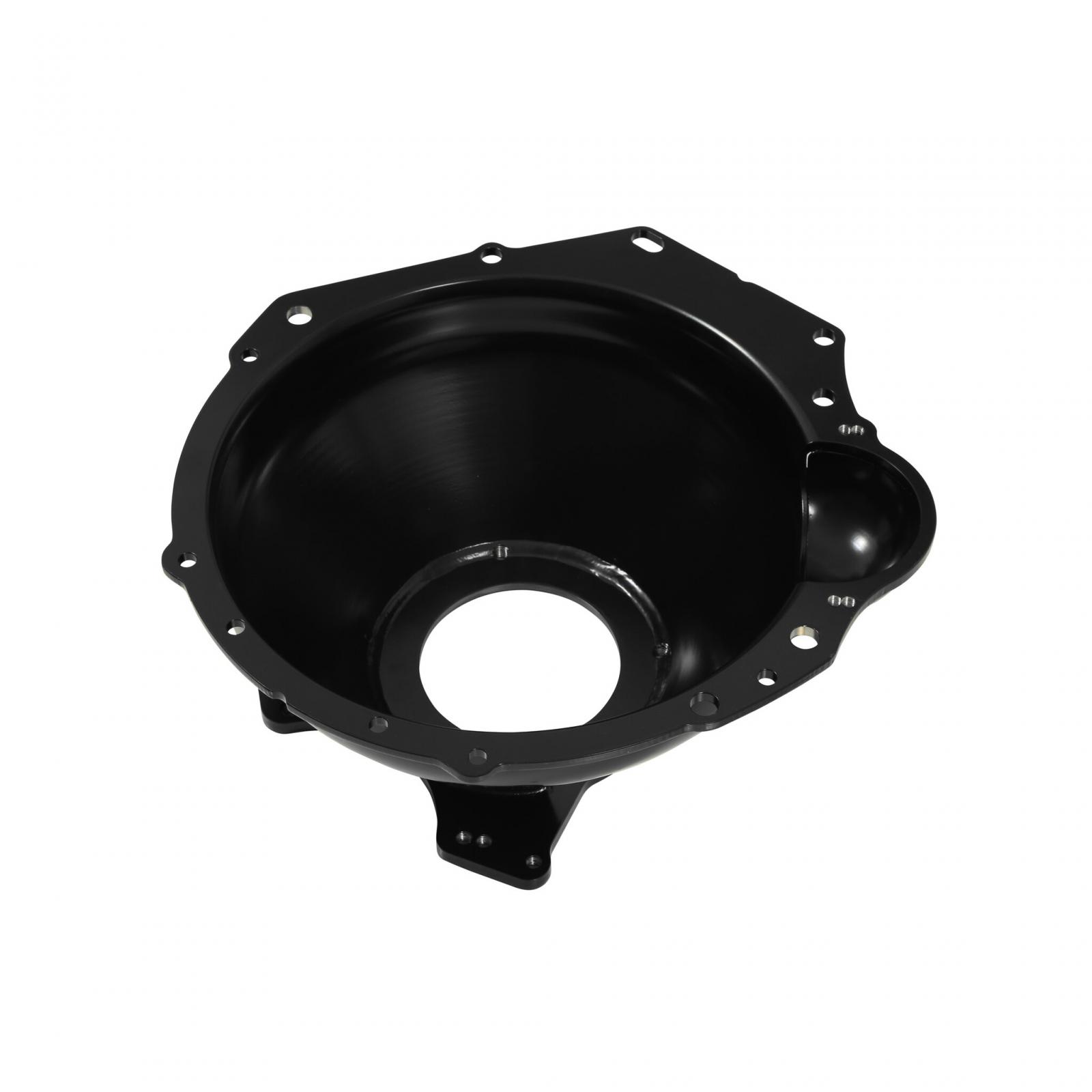

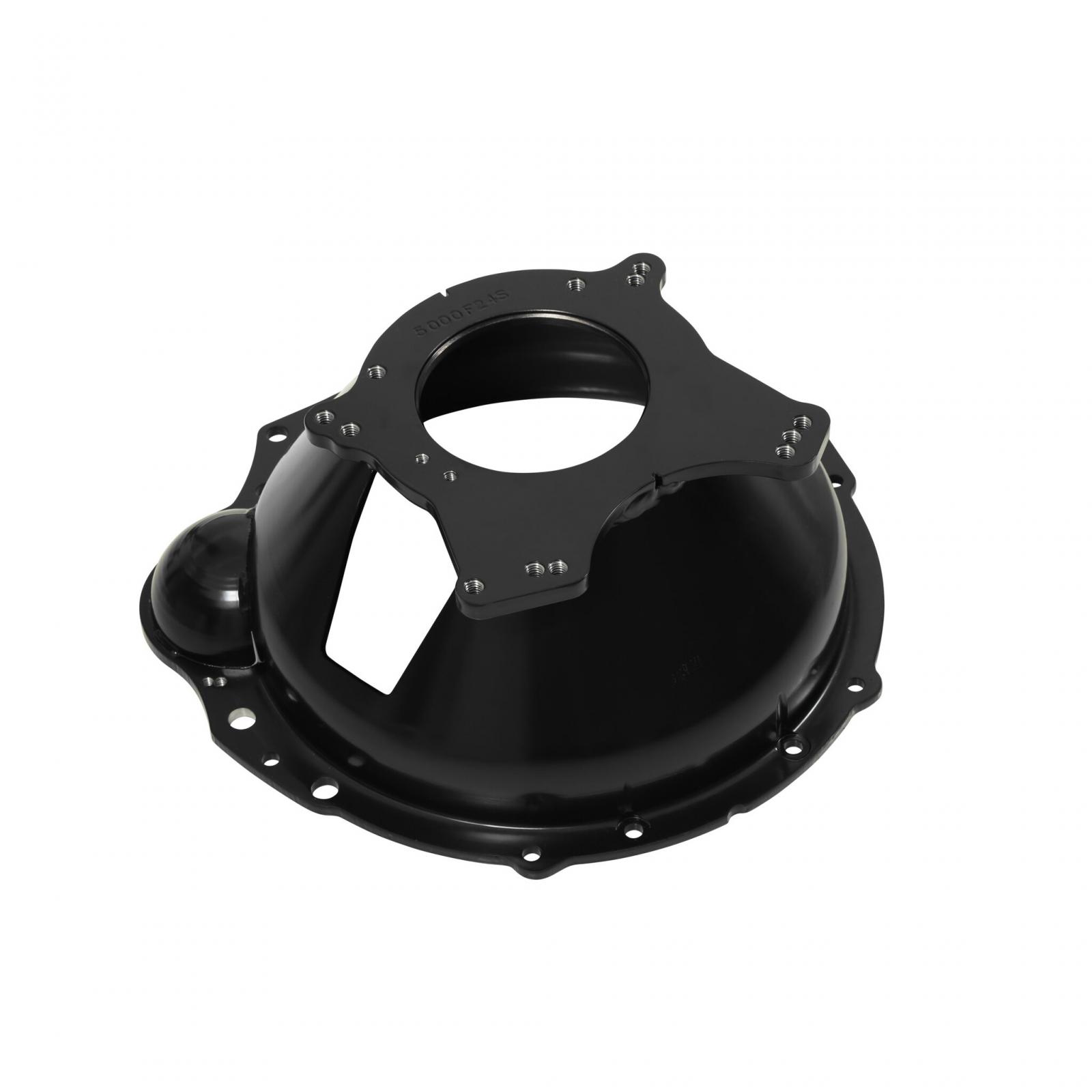

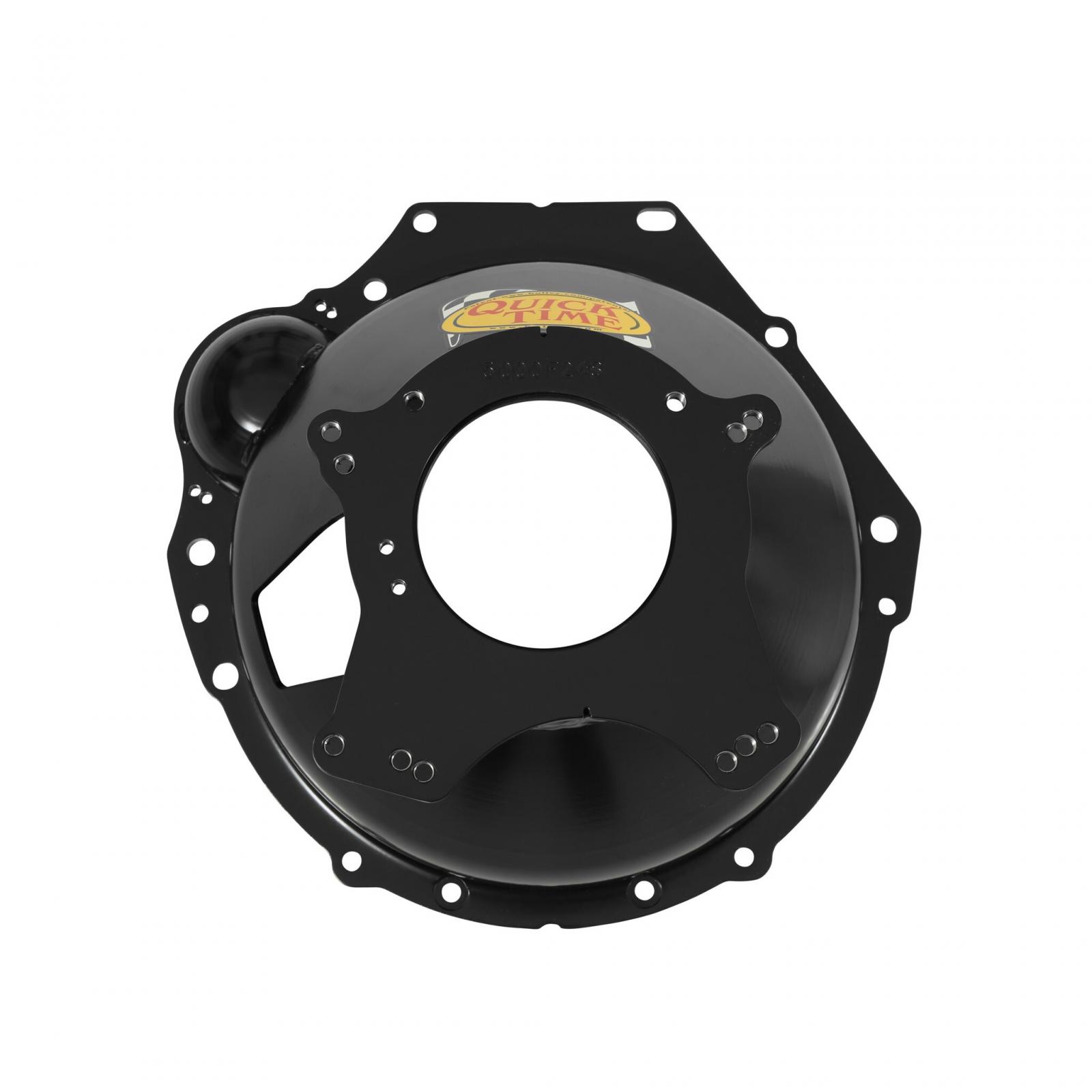

The Quick Time RM-5000 bellhousing connects Ford Australian 4L, BA, BF, FG 6-Cylinder Barra engines. to Ford TKO 500-600, TR3550, T5 Mustang transmissions. For use with mechanical, pull cable and hydraulic clutches.

This bellhousing is S. F.

I. certified 6.1 which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter-mile. This bellhousing is a universal fit bellhousing and is not vehicle specific.

The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 157/162 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: T5 Ford 1983-1993, TKX Ford, TR3550, TKO 500/600 Ford
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Mechanical or Hydraulic
• Engine: Ford Falcon Barra 4.0 BA, Ford Falcon Barra 4.0 FG, Ford Falcon Barra 4.0 BF
• Engine Make: Ford
• Make: Ford
• Weight: 20#
• Clutch: 10.5 or 11 Clutch Disc
• Clutch Diameter: 10.5 inch or 11 inch

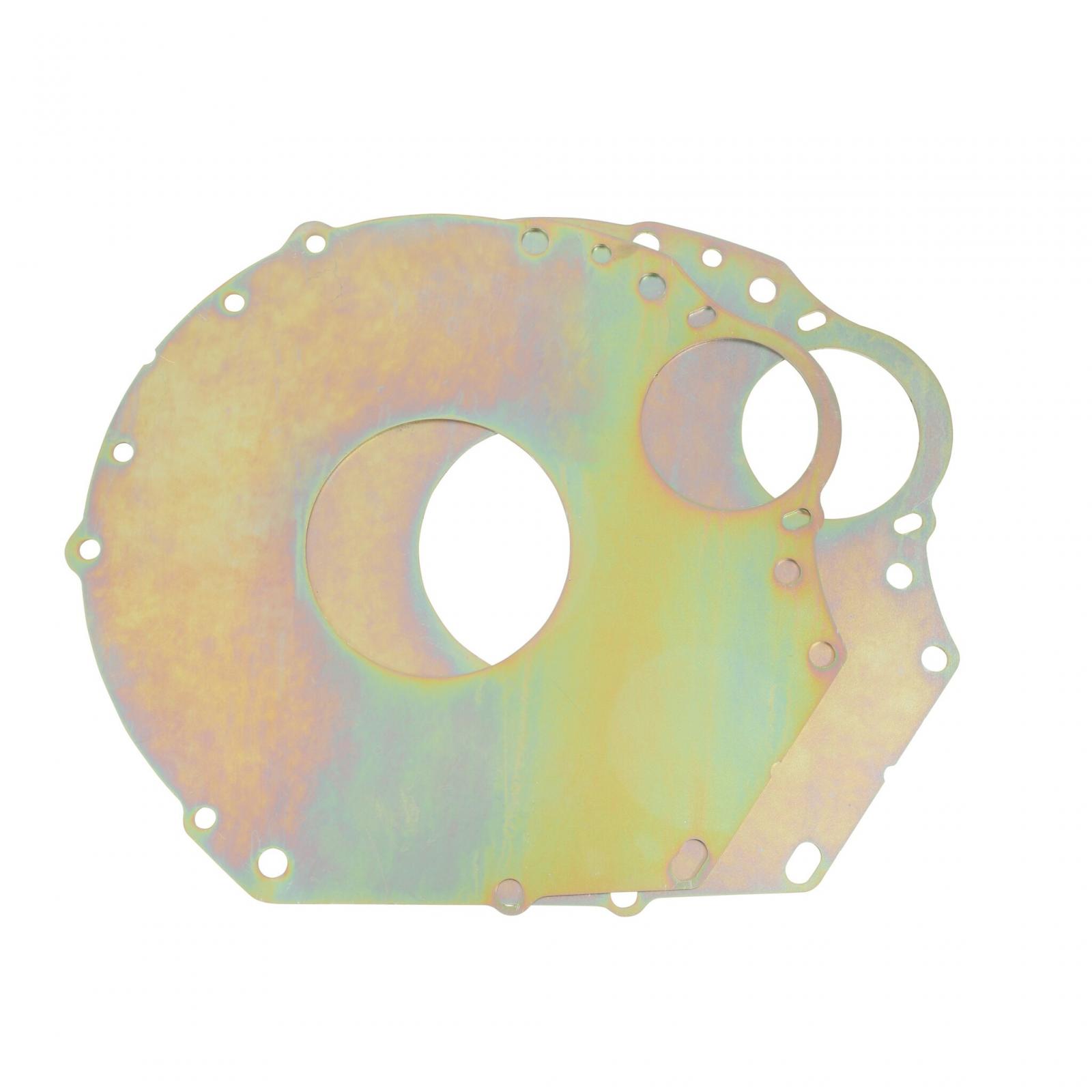

• Engine Plate: RM-5000-C
• Height: 6.95 inch
• SFI Certification: 6.1
• Trans Bore: 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 20
