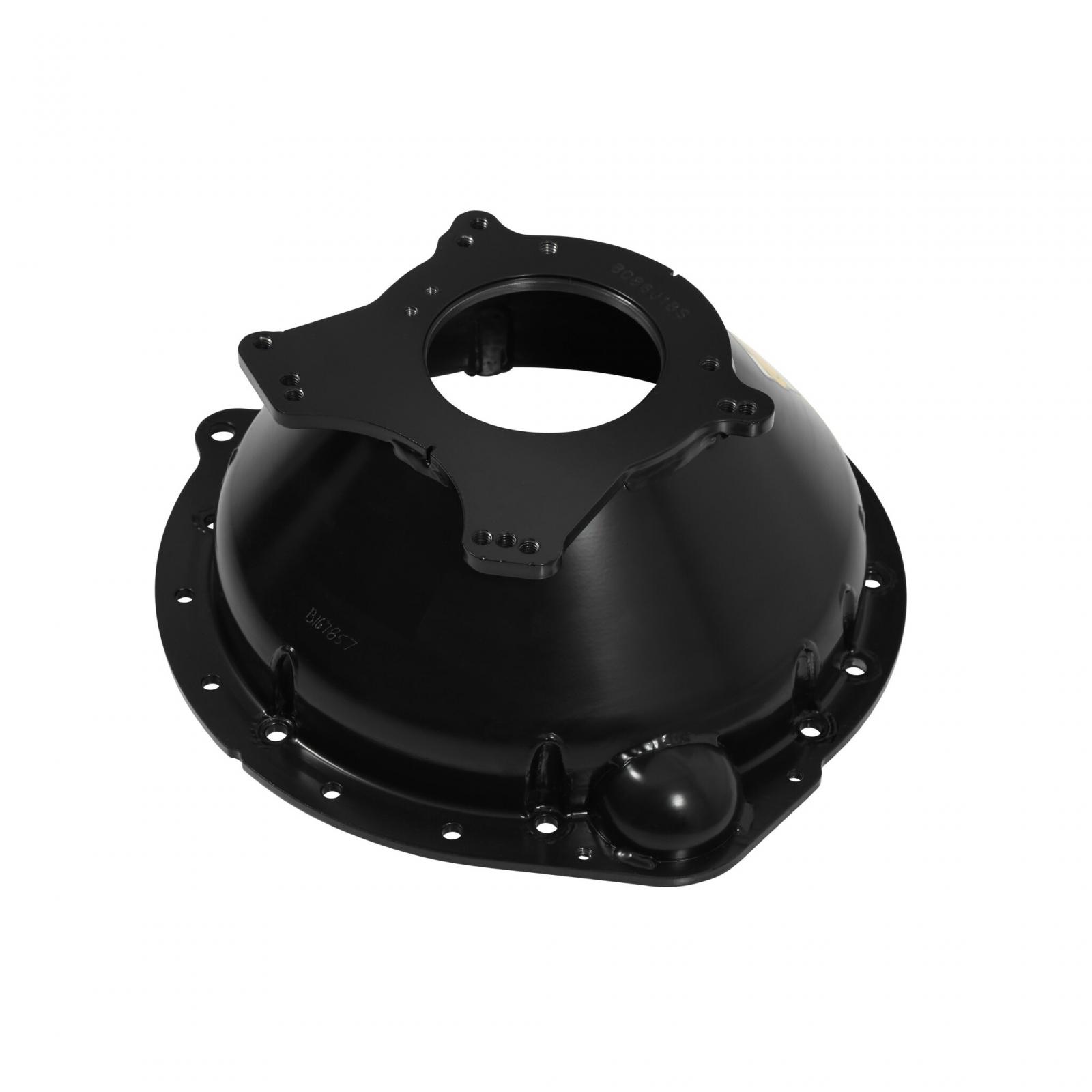

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 164 Tooth
• Patented: yes
• SFI Approved: Yes
• Transmission: TKO 500/600 Ford, TR3550, T5 Ford 1983-1993, TKX Ford
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Mechanical or Hydraulic
• Engine: Ford EcoBoost
• Engine Make: Ford
• Make: Ford
• Weight: 22#
• Clutch: 12 Clutch Disc
• Engine Plate: RM-8086-C
• Height: 6.925 inch
• SFI Certification: 6.1
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 22
