Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5 Inch Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

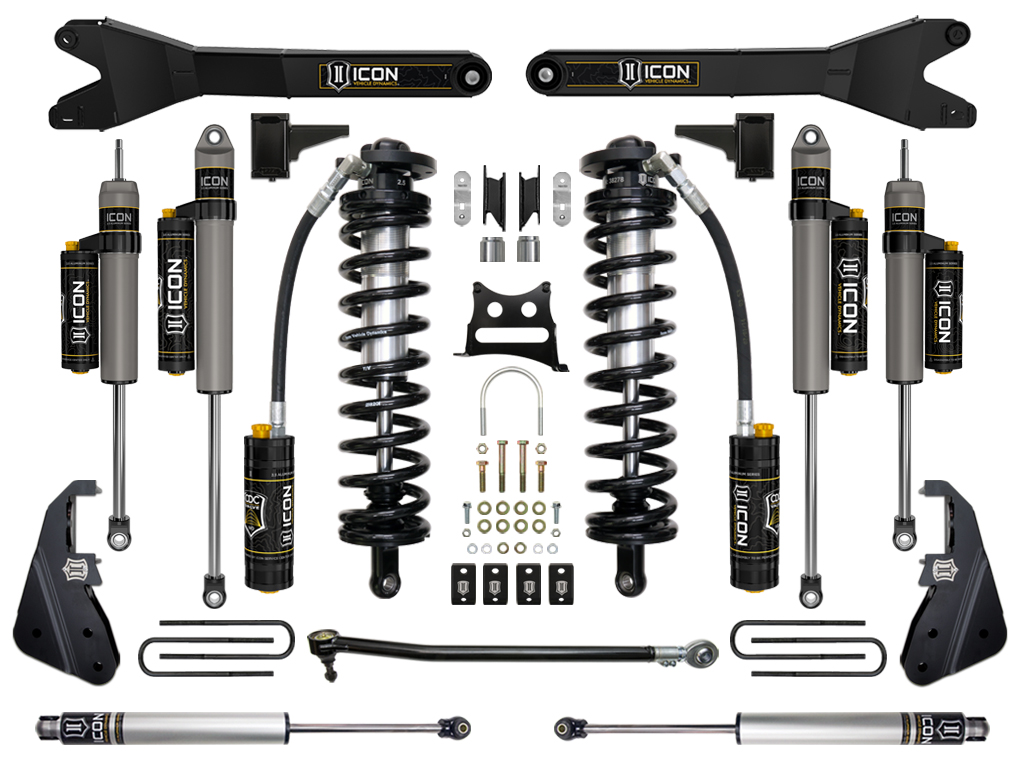

• This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.
• Bolt-in system fits in OE coil bucket location
• Corrosion resistant anodized aluminum shock bodies with 7/8 Inch shafts (2.5 Aluminum Series shocks)
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers provide 4-5.5 Inch or 4.75-6.25 Inch of lift, depending on year model of truck
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

• Bushings Included: No
• Coils Quantity Front: 2.0
• Grade Type: Performance
• Maximum Lift: 6.25 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
