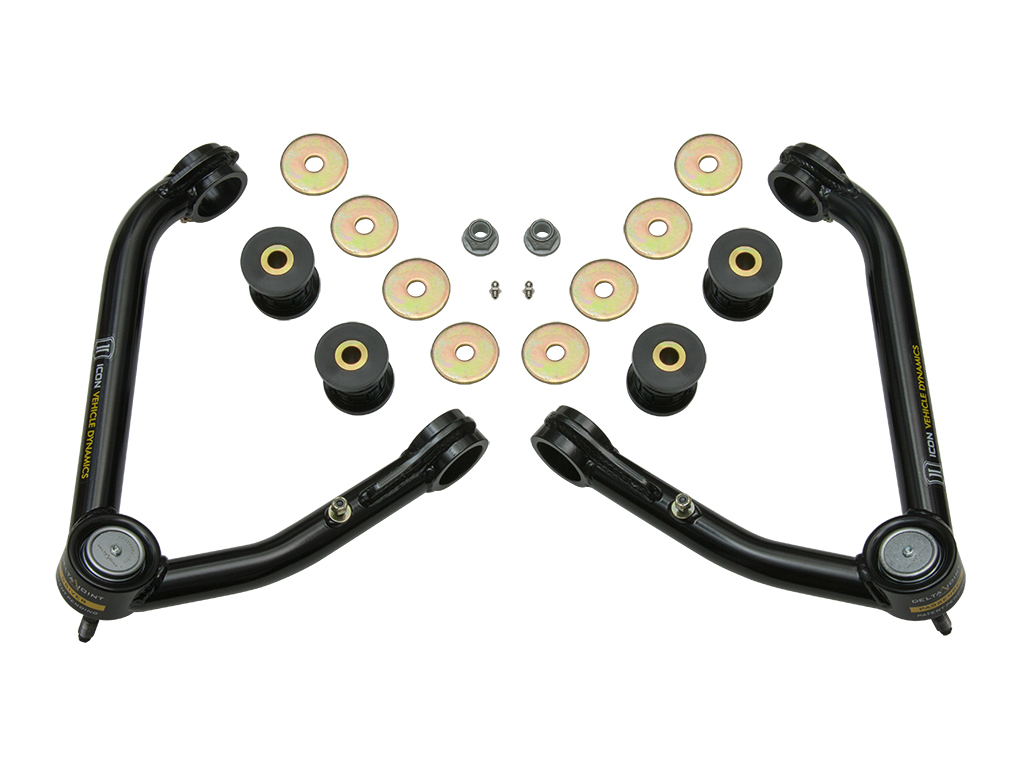

Take the performance of your 2007-2016 GM 1500 truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance.

ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2007-2016 GM 1500.

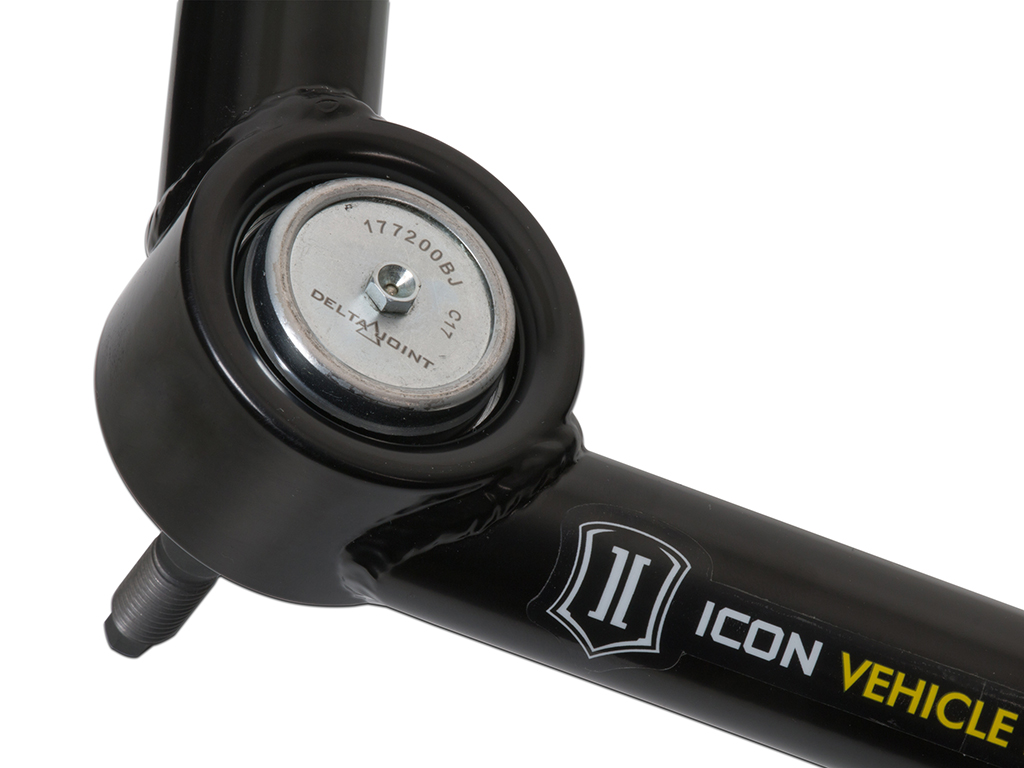

• These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
• ICON Delta Joint
• 1026 DOM Steel Construction
• CNC Bent Tubing

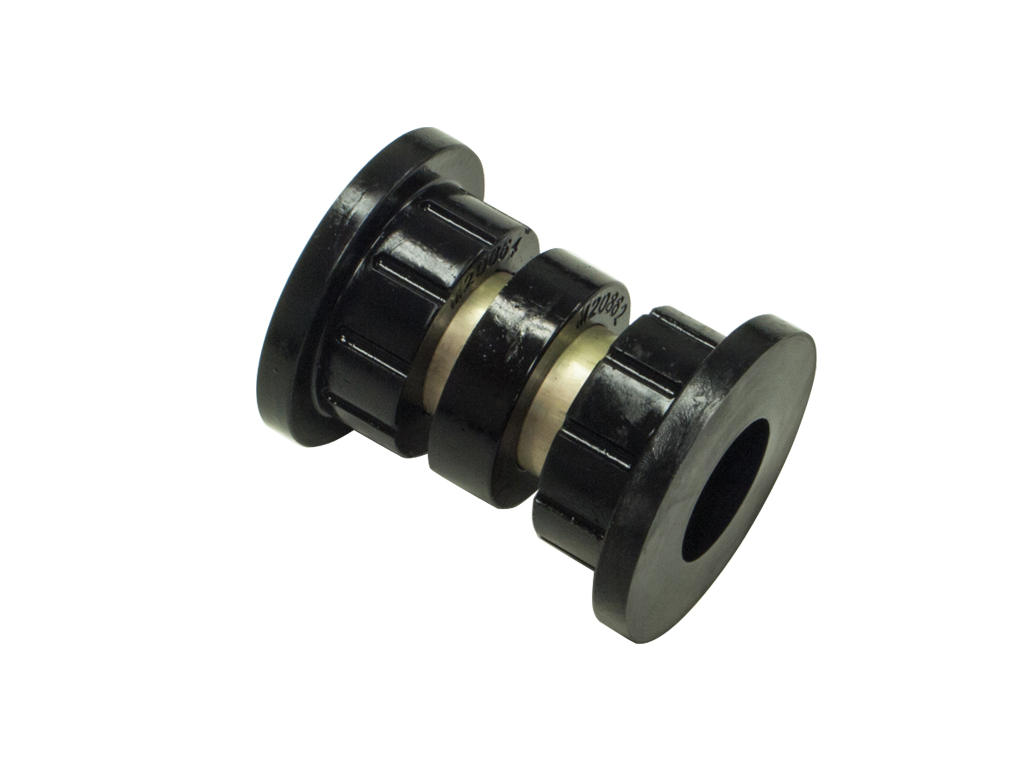

• Serviceable Dual Stage Bushings
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Black Semi-Gloss Powder Coat Finish

• Color: Black
• Material: Dom Steel
• Finish: Powdercoated
• Adjustable: No
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Color: Black
• Bushing Material: Polyurethane
• Bushings Included: Yes
• Control Arm Color: Black
• Control Arm Construction: Tubular
• Control Arm Material: Steel
• Grade Type: Performance

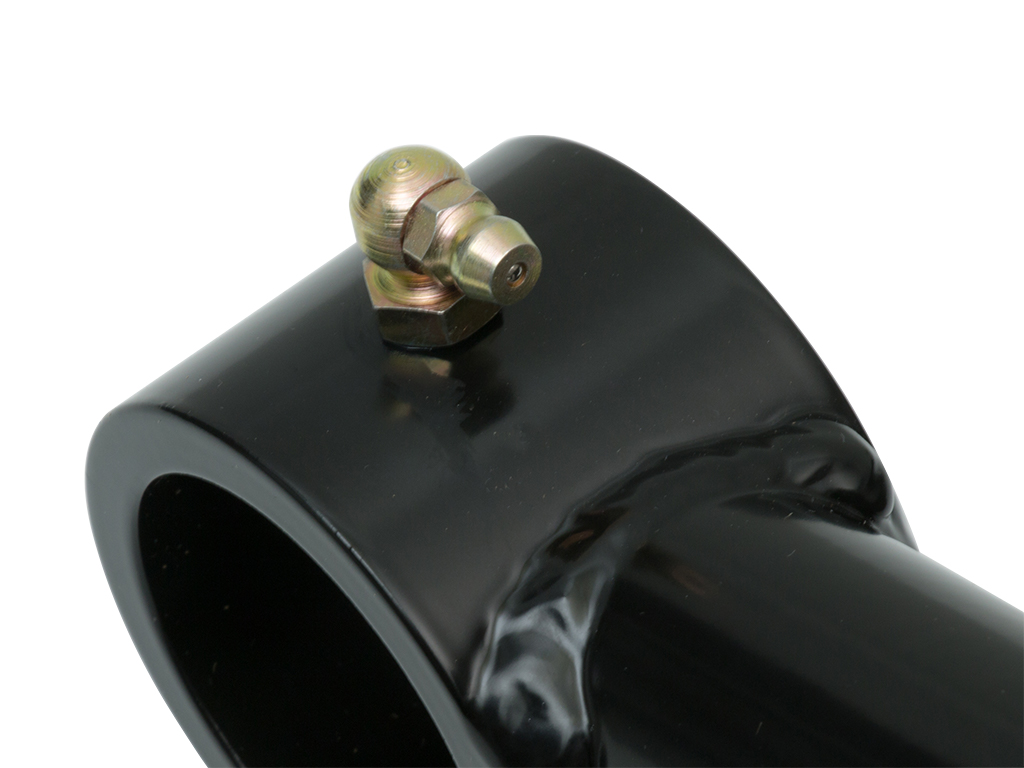

• Grease Fitting Included: Yes
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Pre Greased: No
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
• Service Parts: 614505 - 78600 / 78601 Replacement Bushing And Sleeve Kit, 614519 - Delta Joint Install Press Adapter Tube
• Suspension Grade Type: Performance
• Add On Part: 191011 - Tubular UCA Billet Cap Set, 191013 - Nipple Greasing Adapter Kit
