Description

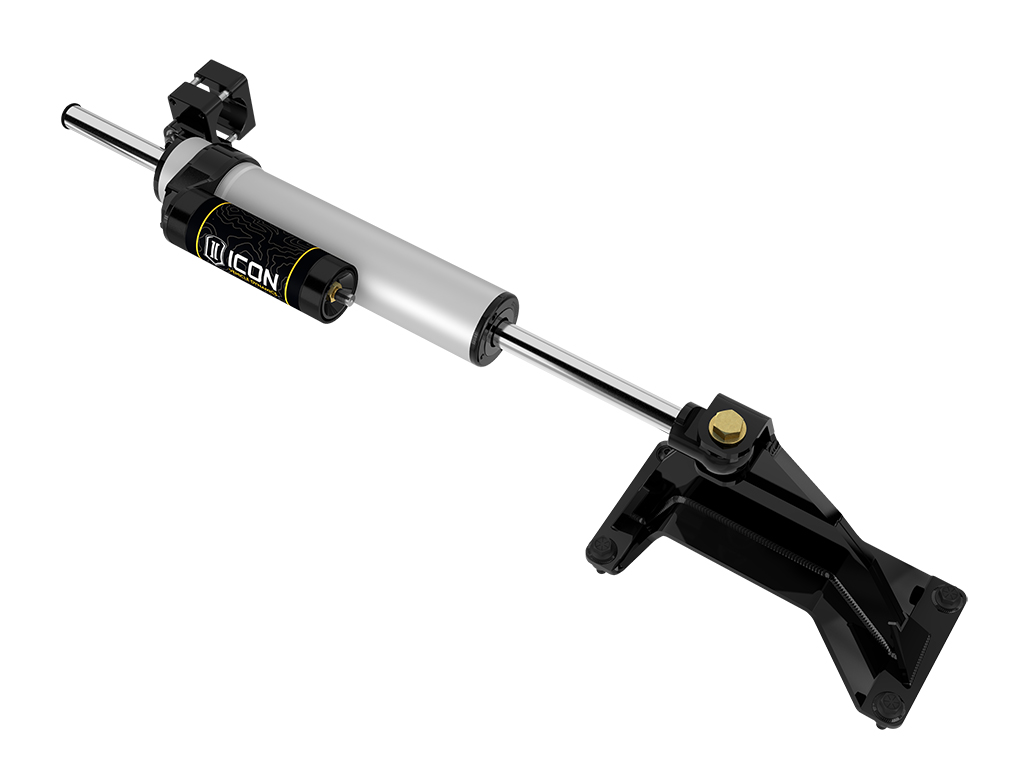

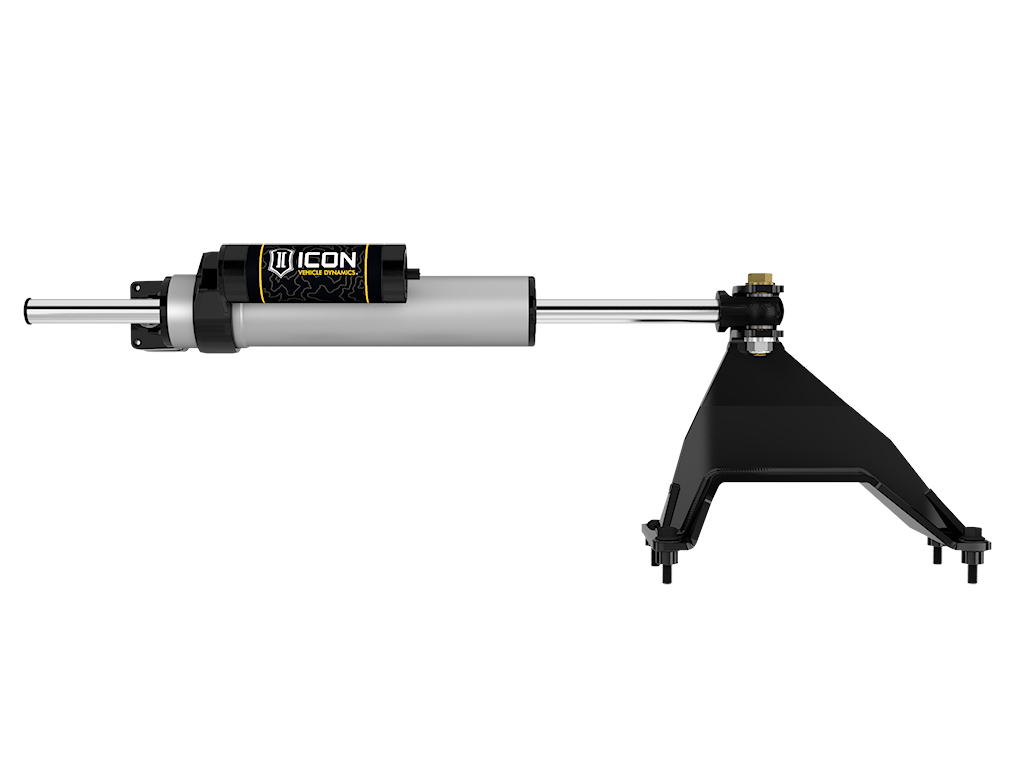

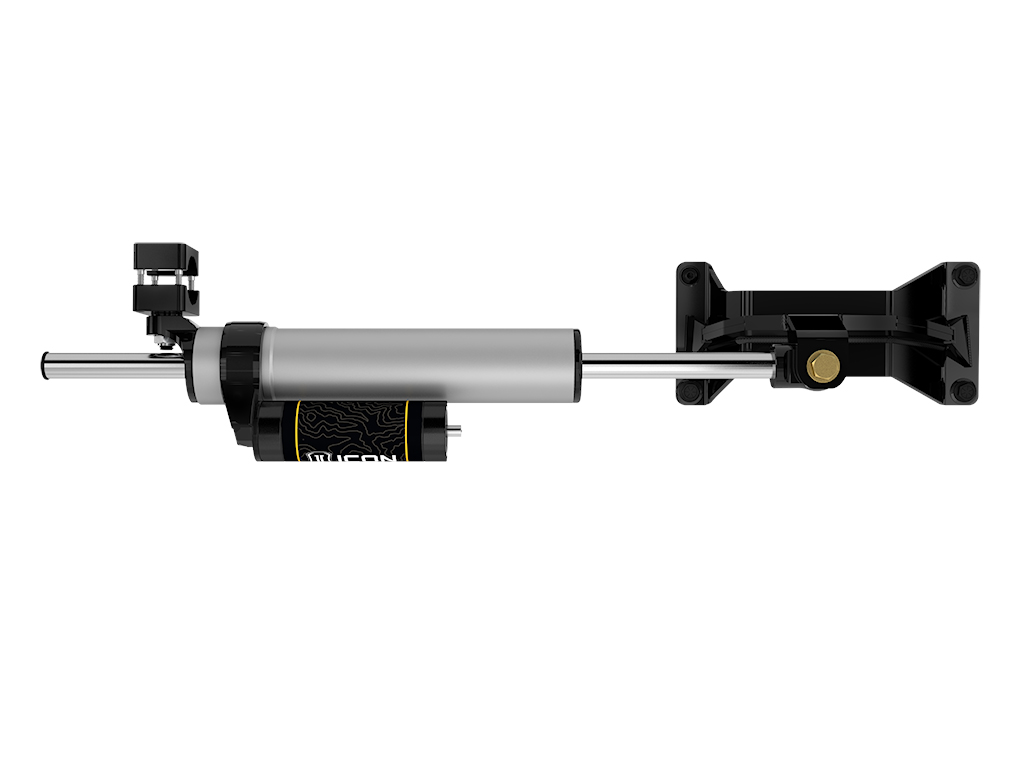

The ICON Centerline Steering Stabilizer features a through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers, resulting in more consistent damping and symmetrical steering feel throughout the input range. The large 2.5-inch diameter stabilizer body and piggyback reservoir increases fluid volume to prevent performance fade due to heat and cavitation.
This unit provides a significant increase in steering damping compared to the stock equipment, for an improved driving experience with both stock size and oversize aftermarket wheels and tires. The kit also allows for increased steering travel compared to other aftermarket steering stabilizers.
The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8 Inch chrome plated induction-hardened steel shaft. FK Rod End bearings provide precise function & feel throughout steering range.
Installation is 100 Percent bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.
Features and Benefits:- Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
- Provides symmetrical steering feel throughout input range
- Drastically increased steering damping over stock unit
- Offers increased wheel travel compared to ICON's dual steering stabilizer kit
- Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
- Piggyback reservoir design
- 6061 hard anodized aluminum shock body provides excellent corrosion resistance
- 7/8 Inch chrome plated induction-hardened steel shaft
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function & feel throughout steering range
- 100 Percent bolt-on installation
- Color: Black/Gray
- Adjustable Damping: No
- Boot Included: No
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Type: Oil
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Bracket Included: Yes
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Steering Stabilizer Configuration: Through-Shaft
- Upper Mount Type: Clamp
